- 22x - 185x with 2D View (Optional 2D Measurements)
- Horizontal 22mm - 2.8mm & WD 80mm Max
- Digital controller with 3.5" LCD Display with 4 Programmable presets for quick access.
- Motorized programmable 3D Viewing Attachment
- High Resolution HDMI Industrial Machine Vision Camera
- 1/2” Sony CMOS Sensor 60fps 1920×1080 lines resolution
- Mouse Control with Multiple XY Lines & Save Image on USB Drive
- High Resolution Industrial Parfocal Imaging Zoom Lens
- Visible Aperture Horizontal 22mm – 2.8mm & WD 86mm Max.
- Corresponding Magnification on 24” Display – 22x – 185x with 2D View
- With motorized programmable 3D Viewing attachment
- 2D/3D Sliding mechanism with independent control for top and Side LED Illumination
- Digital controller with 3.5″ LCD Display with 4 Programmable presets for quick access.
- Reliable Power Adaptor, Wireless Mouse, 16 Gb Pen Drive,
- Kill Switch & Compatible HDMI Cable & Assembly Hex keys
- Native Full HD HDMI Input High Resolution 24″ Display, GM Power Strip
- Heavy Duty Table Top Stand with Coarse Focus Adj.
- Interface : HDMI Cable
- Mouse Control with Multiple XY Lines – Edit Colour / Thickness etc.
- Pen Drive Slot for Capturing Photos – JPEG File Compressed <250kb
- Higher Dynamic Range Control with Custom HDR Adjustment.
- Real Time Exposure Setting for Dynamic Correction.
1080HD system with a 2D/3D System

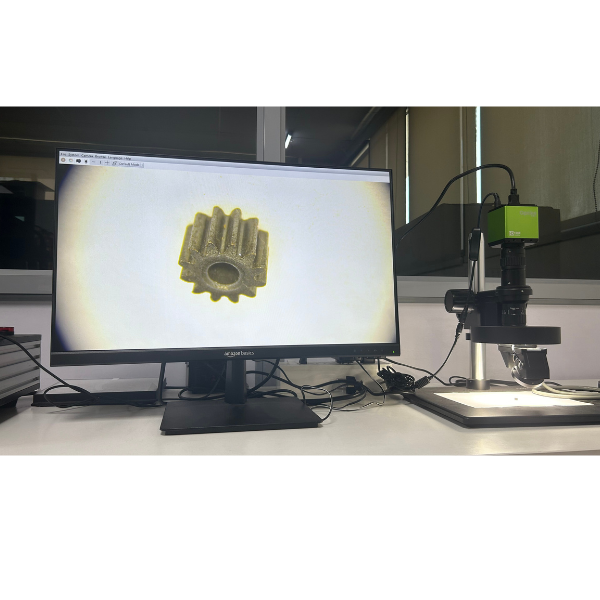

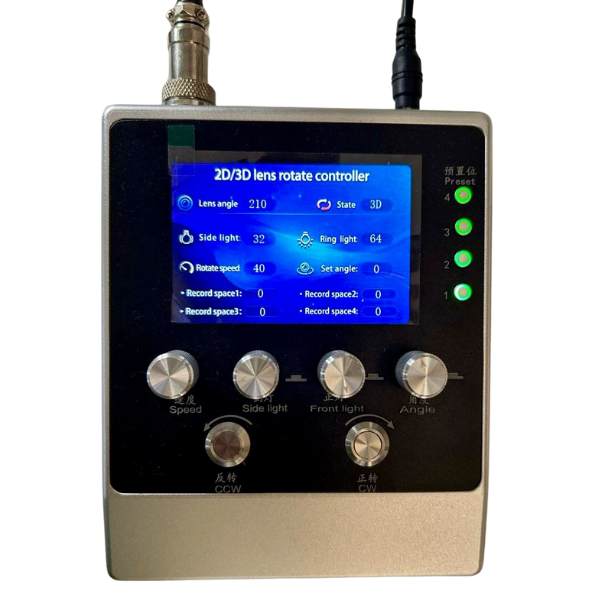

We are happy to present to you our Optike Industrial Visual Inspection 1080HD system with a 2D/3D attachment system. This tool is ideal for precise and critical component inspections, featuring both 2D and 3D attachments, high-quality imaging, and a 2D/3D sliding mechanism with separate controls for top and side LED illumination. Our system includes a high-resolution HDMI industrial machine vision camera with a 1/2” Sony CMOS sensor, providing 60 fps and 1920×1080 line resolution for real-time image processing and display. It offers high-resolution Full HD images on a 24″ Full HD LCD monitor. With the special 2D/3D motorized rotation lens setup, users can configure the microscope for either 2D or 3D observations. For 3D observation mode, enabling oblique viewing of samples, users can adjust the rotation speed for a complete 360-degree sample view. The 3D Attachment Controller features a digital LCD display and controls for top light, side light, and rotation speed, which can be saved using the 4 preset buttons for quick program recall.
- Our Industrial VIS is designed to work in Shop floor 24 x 7 x 365 without any issues.
- Excellent Price to Performance & Fastest ROI.
- Robust & Reliable Industrial Build Quality.
- Reduced Operator Fatigue & Increased Productivity.
- Reliable Process Control & Better Visibility.
Industrial Visual Inspections Systems consists of macro or micro zoom inspection systems designed for assembly or quality control operations. These industrial grade quality system packages are equipped with a digital camera (complete with software) that allows the user to have free hand mobility while viewing the specimens on computer screen. These systems are available with a variety stands available for most industrial applications.
The Vision System is a revolutionary image processing system that delivers flexibility, reliability, and increased productivity. This crafted from high quality materials and components, designed for a myriad of detection and inspection applications.
These intelligent inspection systems come equipped with a camera or multiple cameras, and even video and lighting.
We welcome you to our office for Live Demo. Contact US
Product Specifications
| Sl No | Product Specification | Product Description |
| 1 | Camera | High Resolution HDMI Industrial Machine Vision Camera with 1/2” Sony CMOS Sensor 60fps 1920×1080 lines resolution |
| 2 | Magnification | Corresponding Magnification on 24” Display – 22x – 185x with 2D View adjustable using the Zoom Lens @ Working Distance of about 70mm. |
| 3 | Software | Mouse Control with Multiple XY Lines & Save Image on USB Drive/Edit Image/Thickness etc. |
| 4 | Lens | High Resolution Industrial Parfocal Imaging Zoom Lens |
| 5 | FOV(Large filed of view) | Visible Aperture Horizontal 22mm – 2.8mm & WD 86mm Max. |
| 6 | 3D Viewing | Motorized programmable 3D Viewing attachment |
| 7 | Illumination | 2D/3D Sliding mechanism with independent control for top and Side LED Illumination |
| 8 | Controller | Digital controller with 3.5″ LCD Display with 4 Programmable presets for quick access. |
| 9 | Accessories | Lead Screw & Pillar Bush Mechanism Reliable Power Adaptor, Wireless Mouse, 16 Gb Pen Drive, Kill Switch & Compatible HDMI Cable & Assembly Hex keys |
| 10 | Monitor | Native Full HD HDMI Input High Resolution 24″ Display, GM Power Strip |
| 11 | Stand | Heavy Duty Table Top Stand with Coarse Focus Adj. |
| 12 | Output HDMI | Interface : HDMI Cable |
| 13 | Extra added Features | Pen Drive Slot for Capturing Photos – JPEG File Compressed <250kb Future Software Upgradeable using Pen Drive. Higher Dynamic Range Control with Custom HDR Adjustment. Real Time Exposure Setting for Dynamic Correction. Image Pause Function & B&W Conversion Function. |
Few Examples of Parts / Components :
