Structured Light 3D Sensor

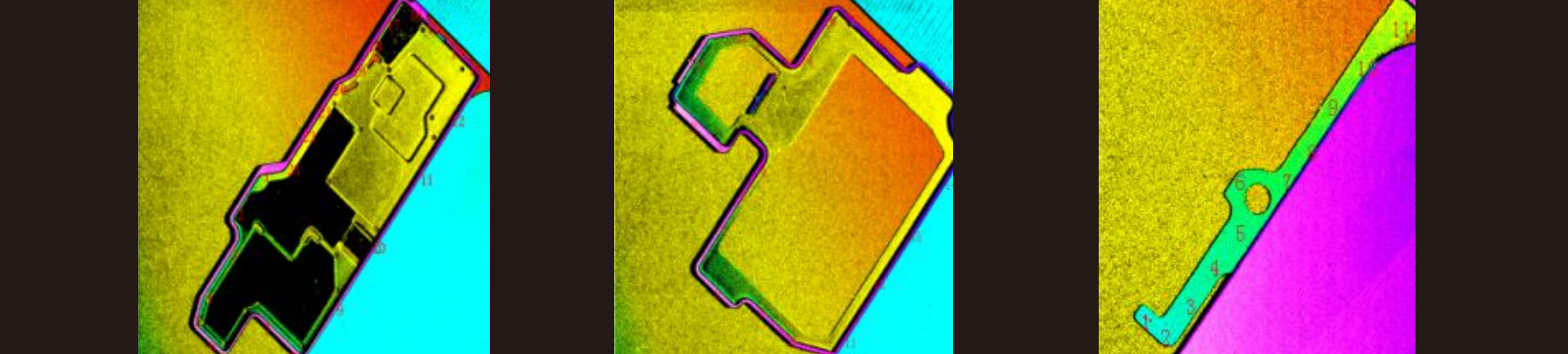

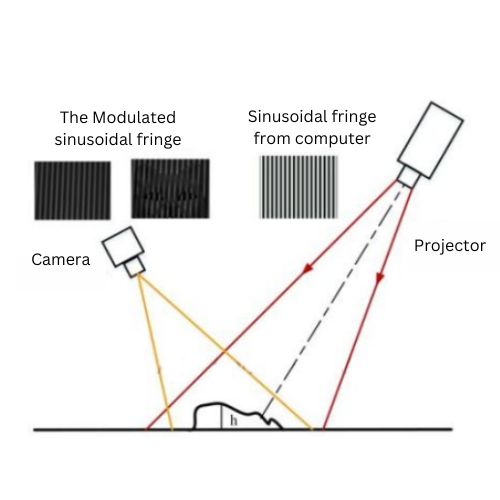

An Optike brand SS/SD Series structured light 3D sensor is an encoded, structured light projected on the object that is deformed due to the existence of the object. The CMOS collects multiple deformed fringe images and processes them through a specific algorithm to obtain the 3D point cloud information of the photographed object.
Product Specification
- Integrate common operators that can obtain measured data and results directly.
- high-resolution photosensitive sensor, high precision
- Simple installation, no need for high-precision, complex motion mechanisms
- Static design, no motion error
- large-area scan, fast online detection
- Support SDKs in various languages for users to conduct secondary development.
- user-friendly interactive interface

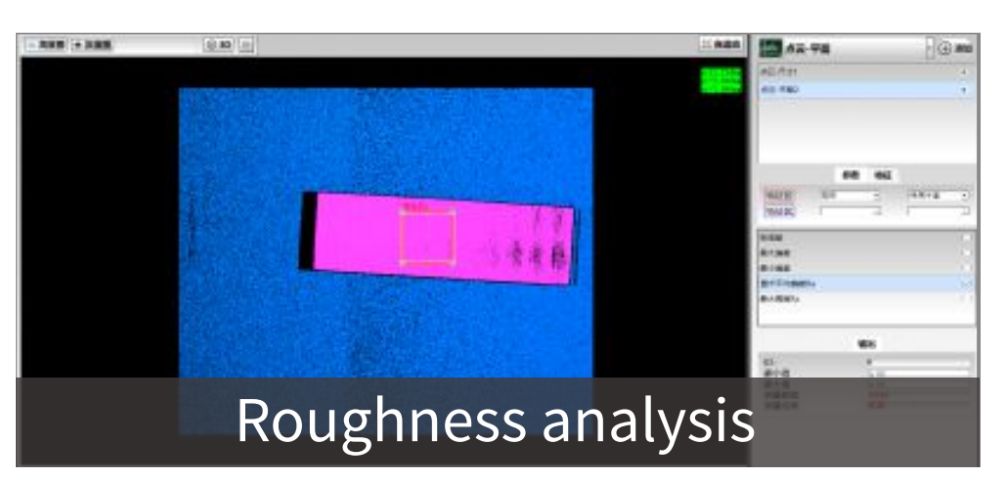

Adapt to Different materials

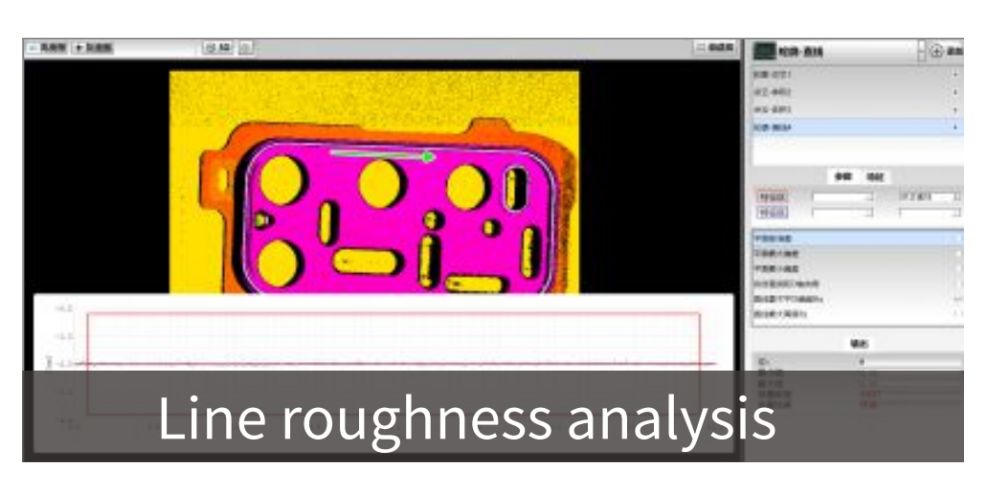

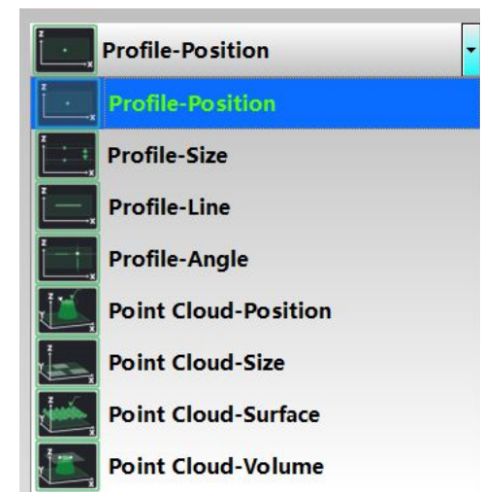

Common Operators
Detect Coplanarity - SS105
- Measurement requirement: Detect the coplanarity of the copper surface in the center of the PCBA.
- Advantage: Multi-point operator is used to calculate the flatness, which is closer to the actual measurement. The detection area is fully covered. According to the specified positioning measurement, the detection accuracy is higher.
Detect the Flatness - SS105
- Measurement requirement: Detect the flatness of the end of the shield
- Advantage: The sample is small, the measurement speed is fast, which max. can reach 0.5s/frame. Self-developed algorithm, automatically extracts the edge of the shield, calculates the flatness, fast positioning algorithm, can adapt to a variety of different types of shield detection

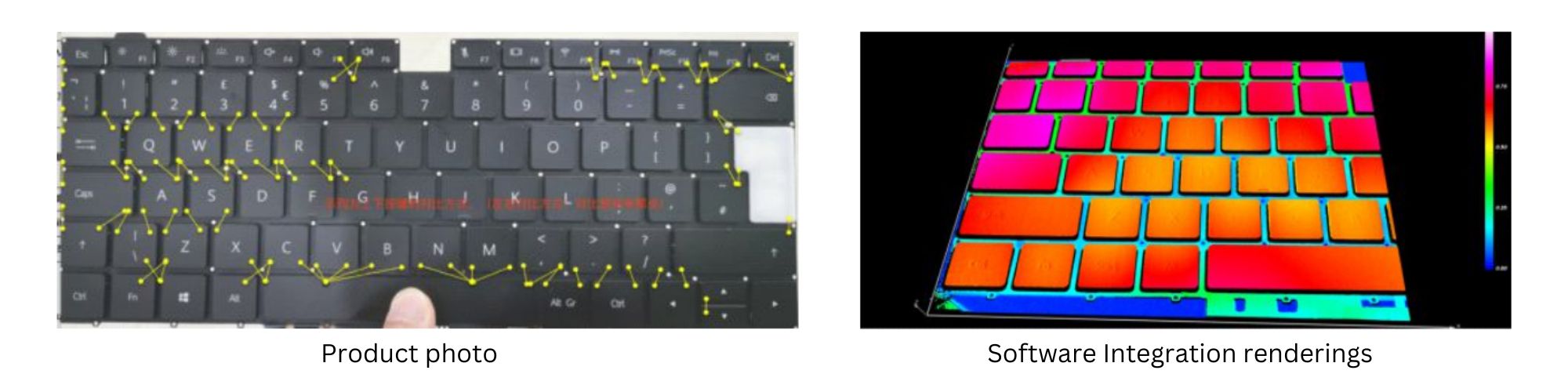

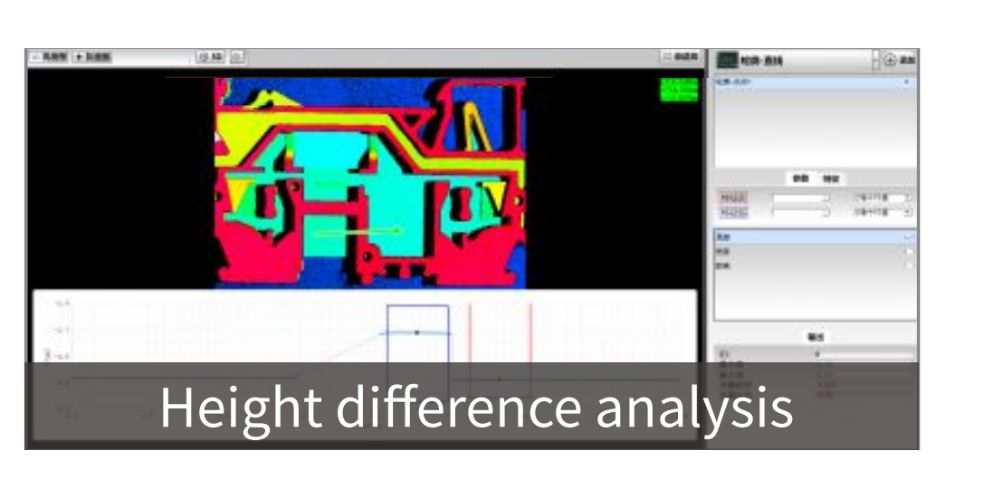

Detect the height Difference - SS114
- Measurement requirement:
1. Detect the height difference between the keys of the keyboard and the specified reference plane
2. The height difference between adjacent keys 2
3. The extreme height difference of each button - Advantage: Large field of view, high precision, fast calculation of one-time imaging by static scanning. Flexible configuration of measurement operators, and support for software customization development.

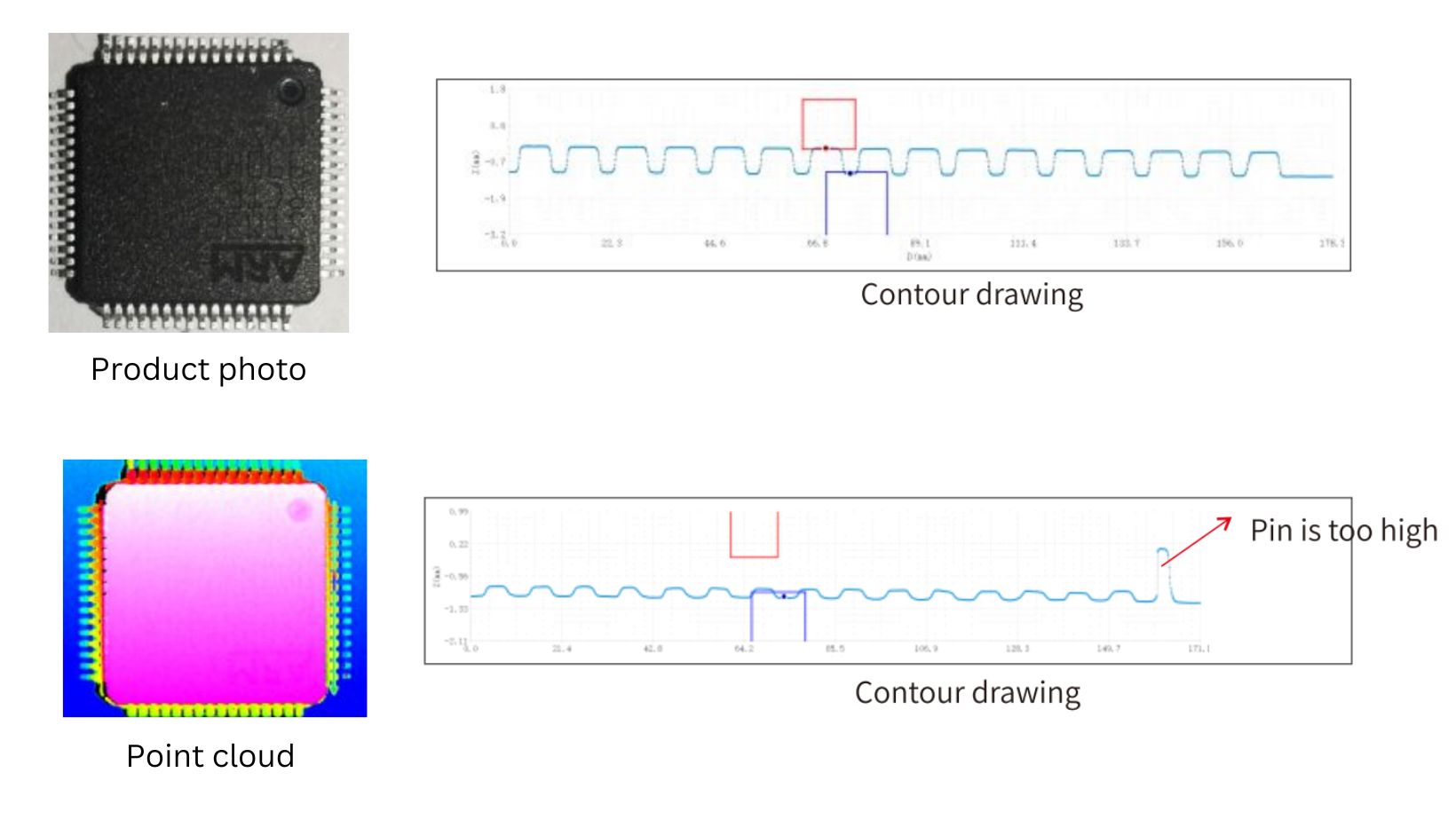

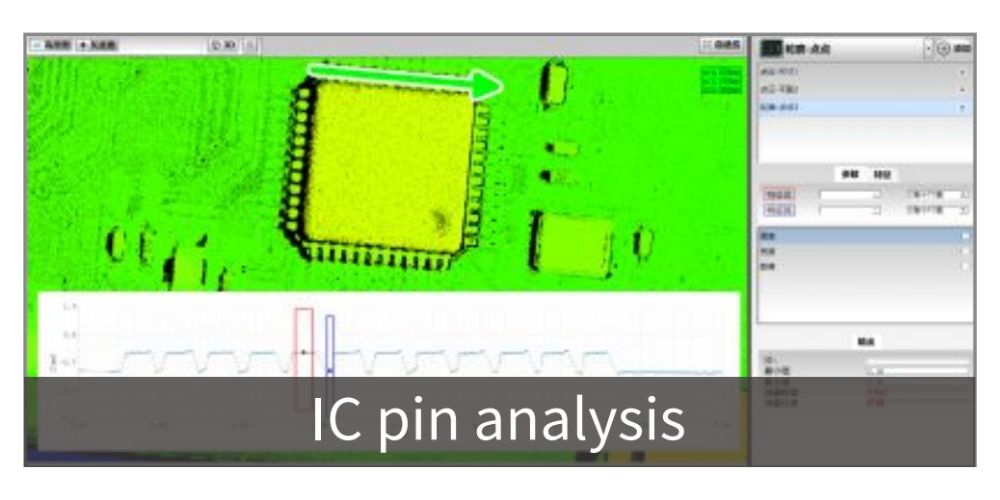

Detect the IC pin - SS101
- Measurement requirement: Detect the height of the IC pin
- Advantage: One scan imaging calculation, no need any movement, and detection of the height of various materials at the same time. A single scan can get regular height abnormalities, solder abnormalities, device connection abnormalities, etc.

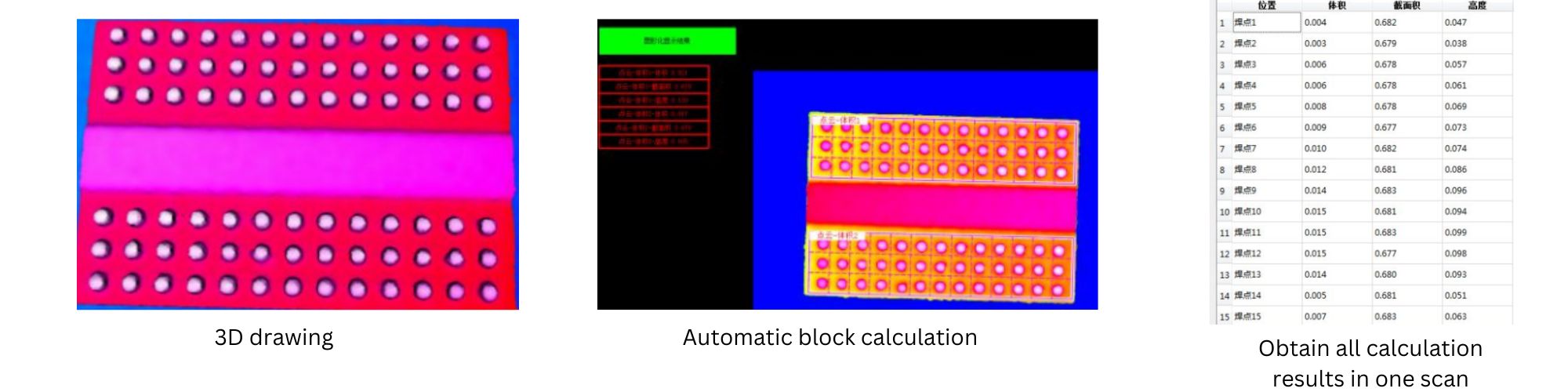

Circuit Board BGA solder ball Inspection - SS202
- Measurement requirement: Circuit board BGA solder ball inspection
- Advantage: One-time imaging, use high-precision sensors for small samples, high accuracy, rich solder ball detection algorithms, block calculation, obtain the volume, height, and cross-sectional area of each solder ball together.

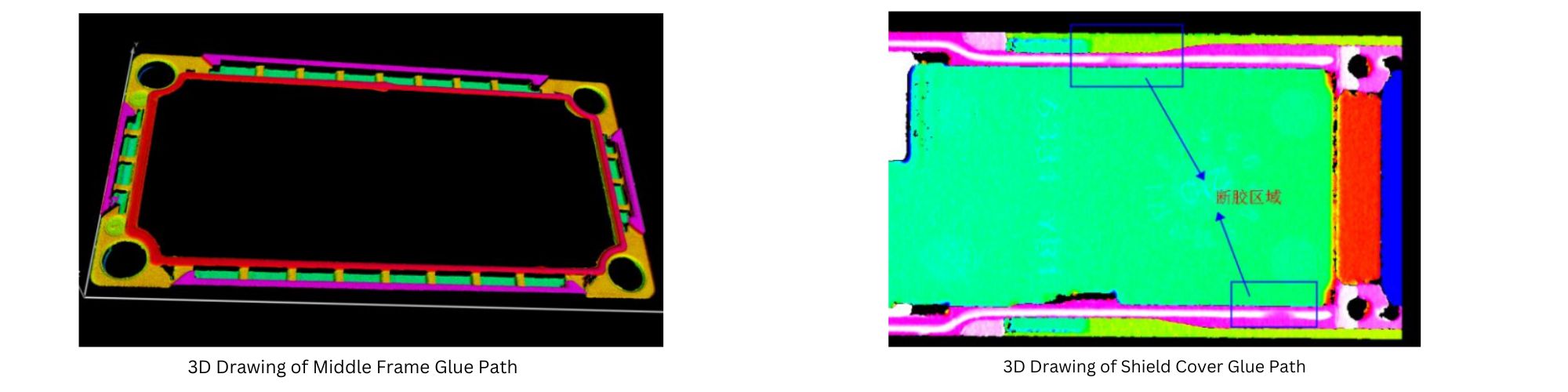

Detect and Judge the Quality of the glue path - SS114
- Measurement requirement: Detect and judge the quality of the glue path
- Advantage: One scan imaging calculation, no need any movement. complex texture, good imaging, high precision ,with self- developed operator to accurately judge the quality of the glue road.
Technical Parameter (SS Series)
| Product Type | SS201 | SS202 | SS105 | SS109 | SS114 | SS120 |
| Working Distance* (mm) | 55 | 107 | 140 | 150 | 260 | 350 |
| Measuring range* (mm) | +/-2 | +/-4 | +/-10 | +/-15 | +/-30 | +/-50 |
| Field Range* (mm) | 8.4×7.1 | 16.9×14.2 | 50×40 | 90×75 | 140×120 | 200×160 |
| Repeatability Accuracy* (µm) | 0.5 | 1 | 2 | 2 | 5 | 5 |
| Resolution XY (µm) | 3.45 | 7 | 20 | 37 | 57 | 82 |
| Weight (KG) | 1.8 | 1.8 | 1.6 | 1.9 | 1.9 | 2 |
| Max. scanning speed* (s) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Input I/O | 2 | 2 | 2 | 2 | 2 | 2 |
| Output I/O | 2 | 2 | 2 | 2 | 2 | 2 |
| External dimension (mm) | 166x177x57 | 166x177x57 | 172x158x57 | 172x158x57 | 210x158x57 | 215x158x57 |
| Data Interface | USB3.0 | USB3.0 | USB3.0 | USB3.0 | USB3.0 | USB3.0 |
| Input Voltage (V) | 12 | 12 | 12 | 12 | 12 | 12 |
| Light Source | Blue LED | Blue LED | Blue LED | Blue LED | Blue LED | Blue LED |
| Projection (pcs) | 1 | 1 | 1 | 1 | 1 | 1 |
| Product Type | SS301 | SS302 | SS304 | SS308 | SS312 | SS318 |
| Working Distance* (mm) | 55 | 107 | 140 | 160 | 250 | 390 |
| Measuring range* (mm) | +/-2 | +/-4 | +/-10 | +/-15 | +/-30 | +/-50 |
| Field Range* (mm) | 8.4×7.1 | 22.5×14 | 40×30 | 80×60 | 120×120 | 180×135 |
| Repeatability Accuracy* (µm) | 0.5 | 0.5 | 1 | 2 | 5 | 5 |
| Resolution XY (µm) | 5.86 | 11.7 | 20 | 40 | 60 | 88 |
| Weight (KG) | 1.8 | 1.8 | 1.6 | 1.9 | 1.9 | 2 |
| Max. scanning speed* (s) | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 |
| Input I/O | 2 | 2 | 2 | 2 | 2 | 2 |
| Output I/O | 2 | 2 | 2 | 2 | 2 | 2 |
| External dimension (mm) | 166x177x57 | 166x177x57 | 172x158x57 | 172x158x57 | 205x158x57 | 215x158x57 |
| Data Interface | USB3.0 | USB3.0 | USB3.0 | USB3.0 | USB3.0 | USB3.0 |
| Input Voltage (V) | 12 | 12 | 12 | 12 | 12 | 12 |
| Light Source | Blue LED | Blue LED | Blue LED | Blue LED | Blue LED | Blue LED |
| Projection (pcs) | 1 | 1 | 1 | 1 | 1 | 1 |
Technical Parameter (SD Series)
| Product Type | SD201 | SD202 | SD105 | SD301 | SD302 | SD304 |
| Working Distance* (mm) | 55 | 107 | 140 | 55 | 107 | 140 |
| Measuring range* (mm) | +/-2 | +/-4 | +/-10 | +/-2 | +/-4 | +/-10 |
| Field Range* (mm) | 8.4×7.1 | 16.9×14.2 | 50×40 | 11×7 | 22.5×14 | 40×30 |
| Repeatability Accuracy* (µm) | 0.5 | 1 | 2 | 0.5 | 0.5 | 1 |
| Resolution XY (µm) | 3.45 | 7 | 20 | 5.86 | 11.7 | 20 |
| Weight (KG) | 2.7 | 2.7 | 2.5 | 2.7 | 2.7 | 2.5 |
| Max. scanning speed* (s) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Input I/O | 2 | 2 | 2 | 2 | 2 | 2 |
| Output I/O | 2 | 2 | 2 | 2 | 2 | 2 |
| External dimension (mm) | 272x177x57 | 272x177x57 | 268x157x57 | 272x177x57 | 272x177x57 | 268x157x57 |
| Data Interface | USB3.0 | USB3.0 | USB3.0 | USB3.0 | USB3.0 | USB3.0 |
| Input Voltage (V) | 12 | 12 | 12 | 12 | 12 | 12 |
| Light Source | Blue LED | Blue LED | Blue LED | Blue LED | Blue LED | Blue LED |
| Projection (pcs) | 2 | 2 | 2 | 2 | 2 | 2 |
