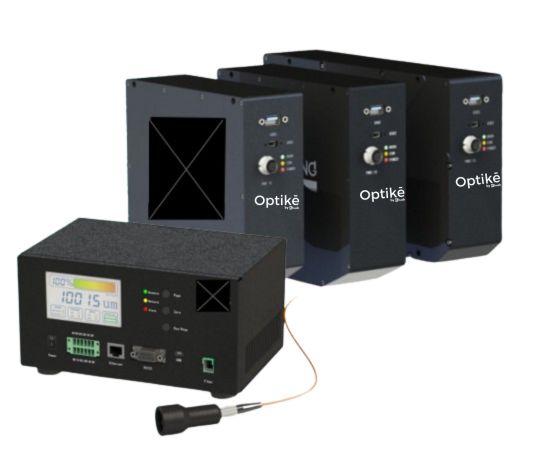

White Light Interference Sensor

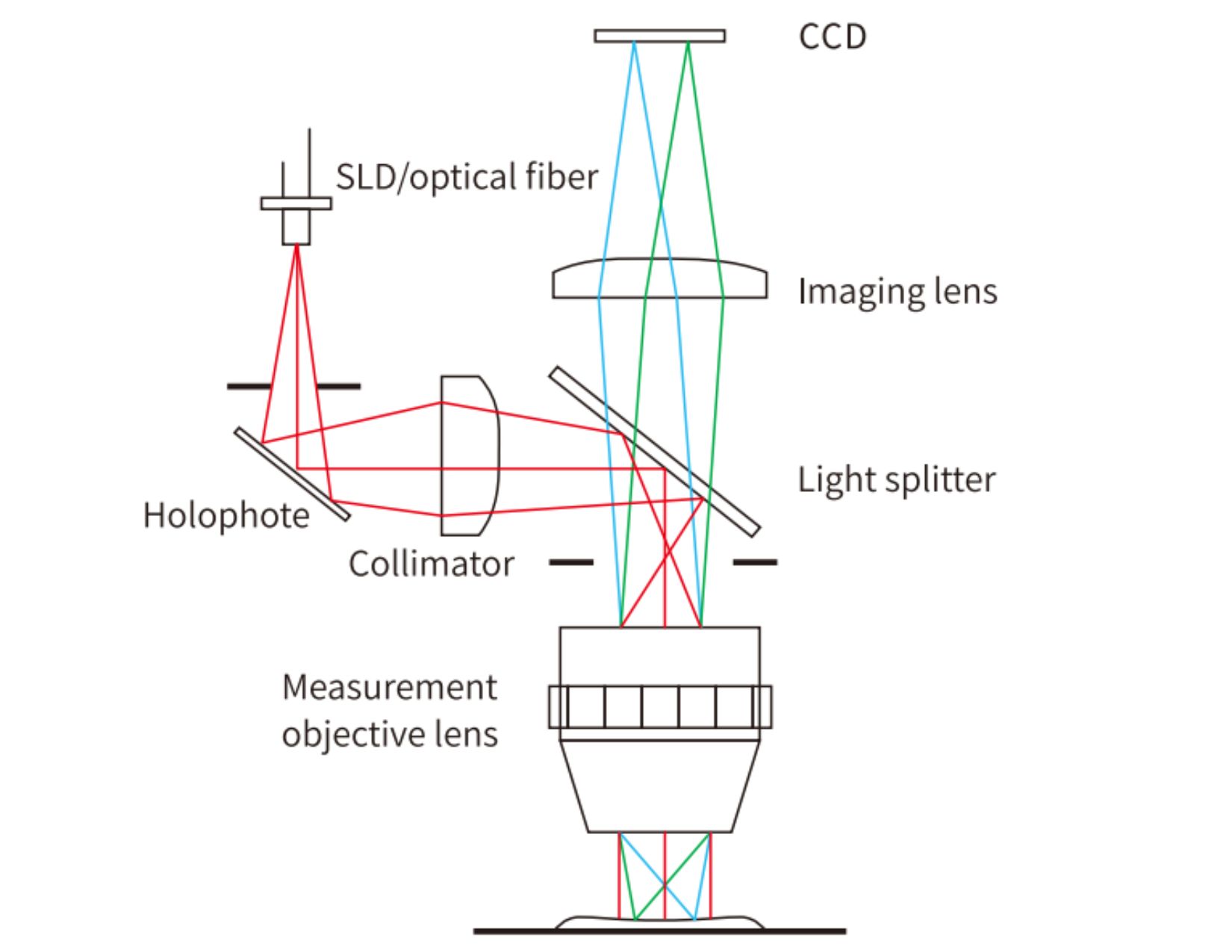

An Optike brand White Light Interference Sensor is an excellent 3D sensor for industries. In this sensor, using the interference principle of the broadband light source, the light irradiated by the light source is divided into two beams by the beam splitter; one beam is incident on the reference mirror, and the other beam is irradiated on the object. When the two beams are reflected and combined, they interfere and are received by the optical receiver. Interference light intensity: when the internal optical unit is driven up and down, interference patterns of different heights are received, and the height value of the surface of the measured object is obtained through algorithmic processing.
Product Specifications
- Vertical scanning, no shadow blocking, and no step influence
- Simple installation, no need for high-precision, complex motion mechanisms
- Up to 0.1µm of repetitive accuracy, the data is true and reliable.
- Quick measure, get 3D data instantly
- Supports SDKs in various languages for users to carry out secondary development.
- Can measure objects of any color; metals, ceramics, glass, and other materials can be measured.

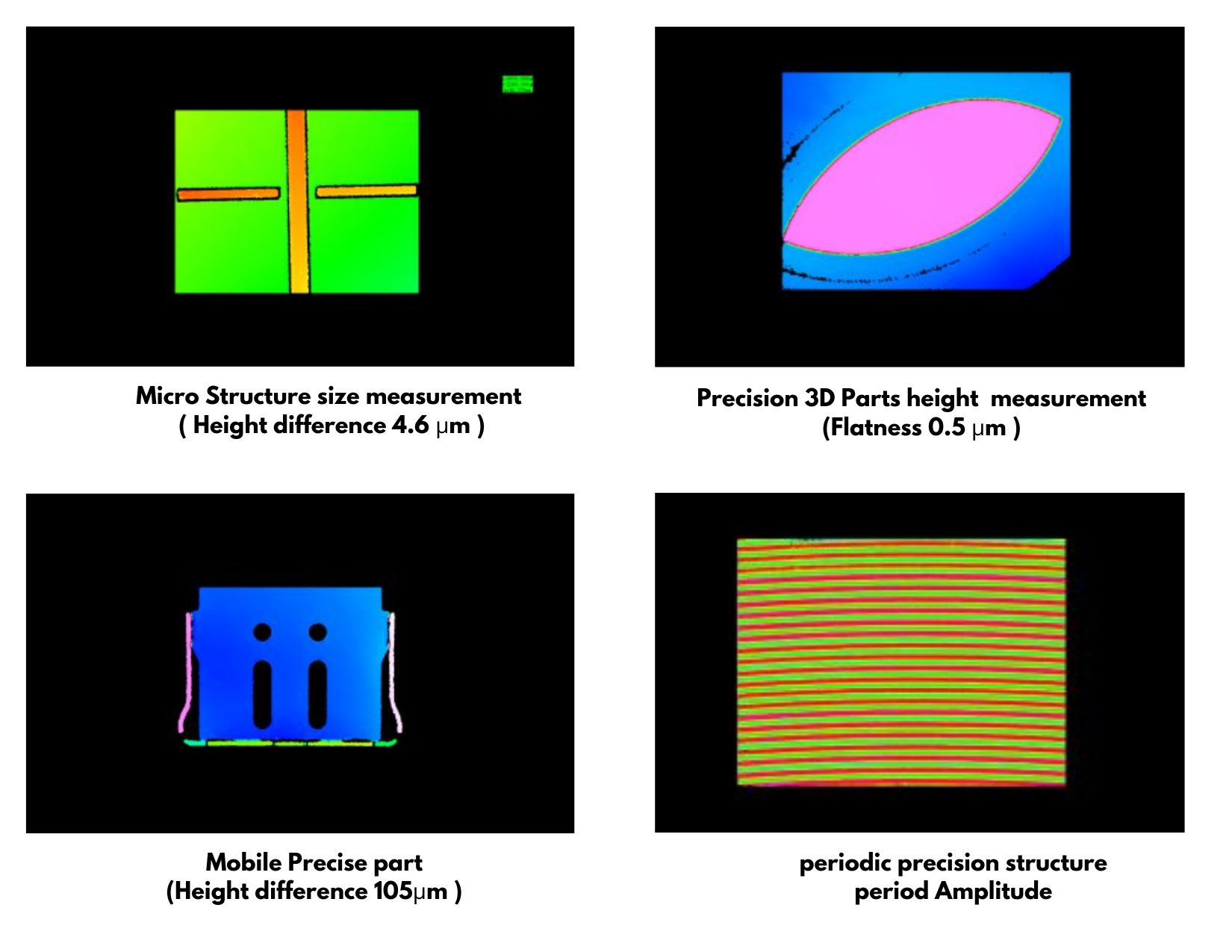

Measurement Samples
Technical Specification

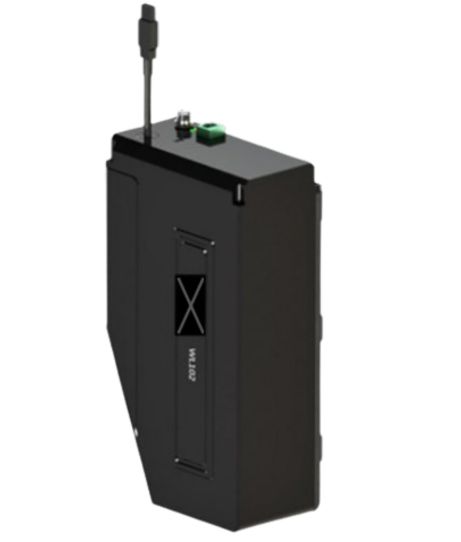

| Product Model | WL102 | WL110 |
| Working Distance (mm) | 3 -13 | 3- 13 |
| Field Range (mm) | 2.1X1.5 | 10×7 |
| Repetitive Accuracy (µm) | 0.1 | 0.1 |
| Measurement Accuracy (µm) | 0.2 | 0.2 |
| X axis Resolution (µm) | 2.78 | 14.1 |
| Max. scanning speed (s) | 1 | 1 |
| Input I/O | 2 | 2 |
| Output I/O | 2 | 2 |
| Dimension (mm) | 296*160*91 | 296*160*91 |
| Weight (KG) | 4 | 4 |
| Data interface | USB3.0,100M network port | USB3.0,100M network port |
| Input Voltage (v) | DC 24 | DC 24 |
| Light Source | Red LED | Red LED |
