4K LCD Microscope

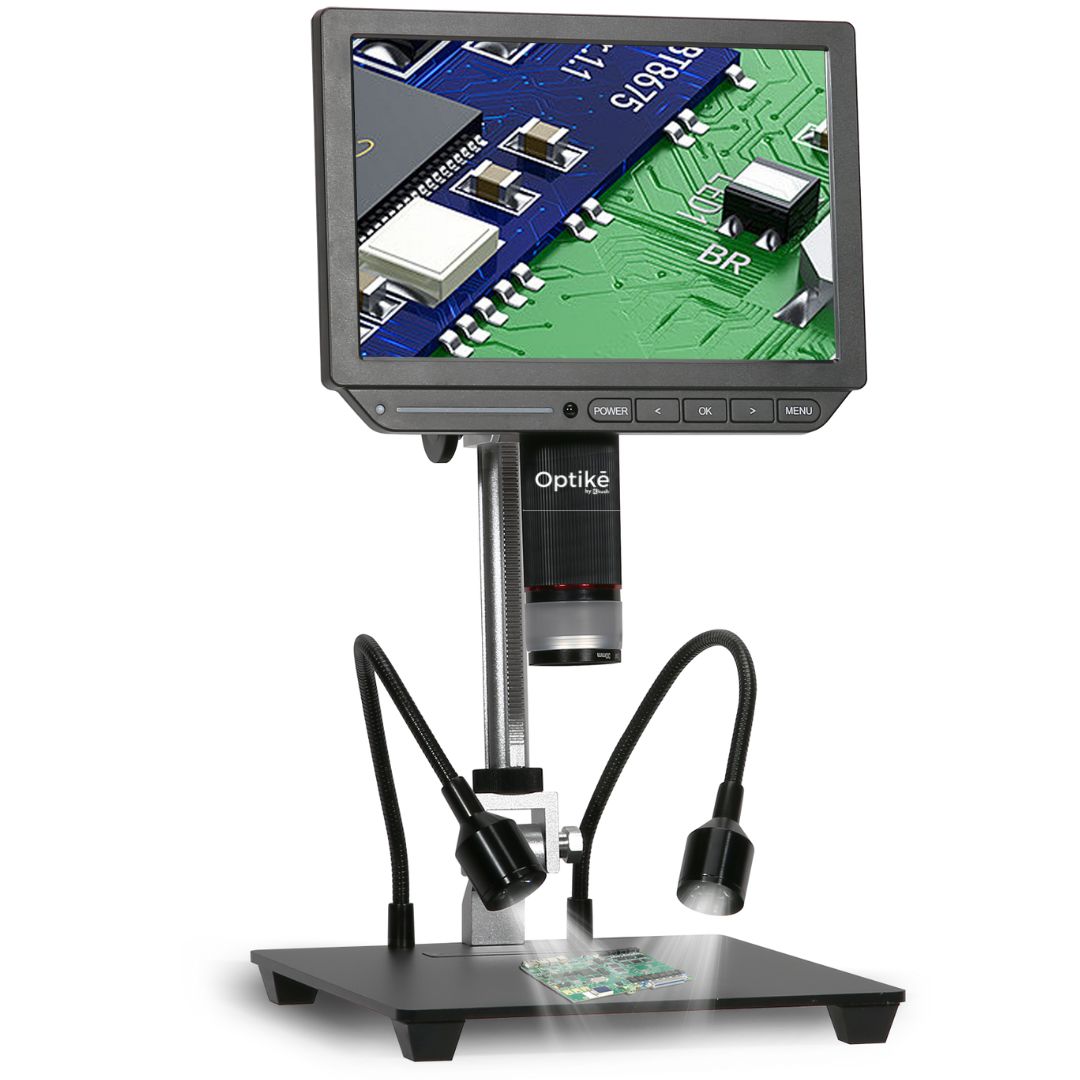

- We are happy to present the Optike 4K LCD Microscope. It is perfect for small inspections of tiny parts in repair shops and beyond. Boasting a small yet powerful field of view and an impressive depth of view, this device has an adjustable working distance of 1–5 cm. With no need for a computer connection, this microscope is incredibly user-friendly. Featuring two side lights on the base, you can adjust the angle to better focus on your product. The adjustable brightness ensures that you can clearly see the product details even in low-light environments. Additionally, this microscope supports high-definition image capture for your convenience.

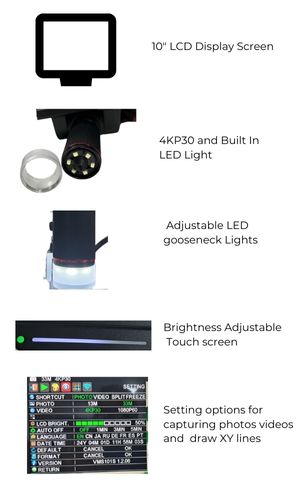

- Equipped with two side lights on the base, you can flexibly adjust the angle to make it better focus on the product. With adjustable brightness, there is enough light for you to clearly see the details of the product even in a dark environment.
- The microscope’s having high-resolution (1280×800) IPS screen with a 180° viewing angle and displays a bright, colorful, clear image, which brings you a marvelous micro-world and a fabulous viewing experience for identifying SMD components, PCB soldering, watch/clock repair, and coin observing.
- The rechargeable battery and gooseneck light do comfortable work, and the battery life is up to 4 hours.

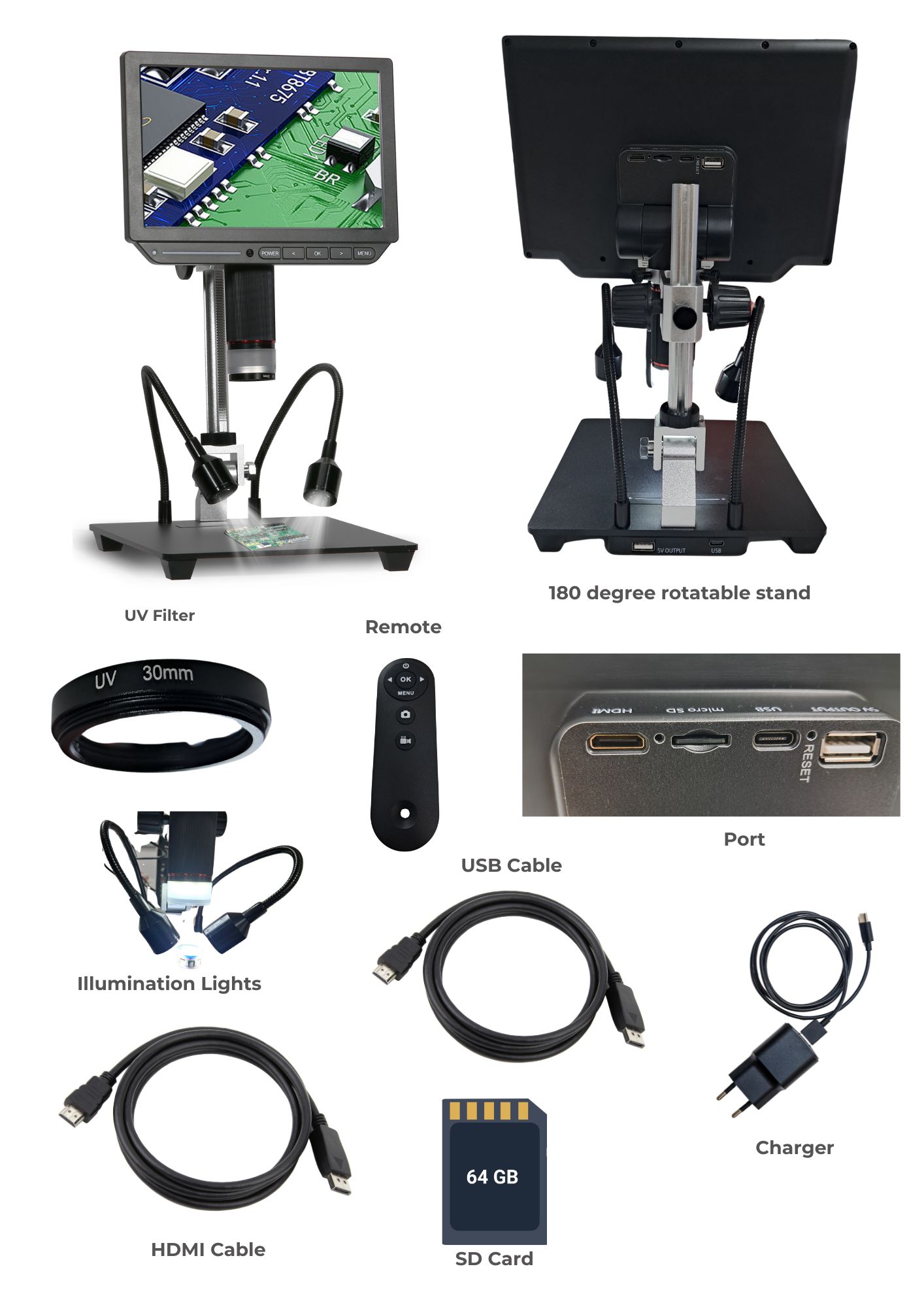

- Equipped with a USB and HDMI port, the HDMI microscope can be connected to any HD monitor or computer. Plug and play: by simply hooking up your laptops, computers, TVs, HD monitors, and projectors, your vision will be extended both on the digital microscope screen and on the on the TV or computer, reflecting your experience of work and study.
| Sl No | Product Description | Specifications |
| 1 | Screen Size | 10.1-Inch IPS |
| 2 | Screen resolution | 1280×800 |
| 3 | Zoom rate | 1600X |
| 4 | Image sensor | 1/3 inch (Sony 13MP) |
| 5 | Working distance | 1cm – 5cm |
| 6 | Pixel size | 1.12µm x 1.12µm |
| 7 | USB resolution | 3840x2160P30(H264), 1080P30, 720P60 |
| 8 | video resolution | 3840x2160P30(clear),10800P60(Smooth) |
| 9 | Image resolution | 4800×2700, 7680×4320 (Interpolation 33M) |
| On-Screen Magnification | FOV (Horizontal) | Working Distance |
|---|---|---|
| 7X | 30mm | 100mm |
| 10X | 22mm | 80mm |
| 14X | 15mm | 50mm |
| 54x | 4mm | 10mm |
