CMOSMTR3 Series TE-Cooling C-mount USB3.0 CMOS Camera
Product Description
- The CMOSMTR3 adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface. CMOSMTR3 hardware resolutions range from 0.5M to 45M and come with the integrated CNC aluminium alloy compact housing.
- With the two-stage peltier cooling sensor chip to -42 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
- CMOSMTR3 comes with advanced video & image processing application ToupView Providing Windows/Linux/macOS/ Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
- The CMOSMTR3 can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.
Product Specification
- Standard C-Mount camera with SONY Exmor CMOS sensors from 0.5M to 45M
- Two-stage TE-cooling with controllable electric fan
- Sensor chip cooling up to 42°C below ambient temperature
- Working temperature can be regulated to specified temperature in 5 minutes
- Smart structure to assure the heat radiation efficiency and avoid the moisture problem
- IR-CUT/AR coated windows
- Up to 1 hour long time exposure
- USB3.0 5Gbit/second interface ensuring high speed data transmission
- Ultra-Fine TM color engine with perfect color reproduction capability
- With advanced video & image processing application ToupView
- Support both video and trigger modes
- Windows/Linux/macOS/Android multiple platform SDK
Example Images

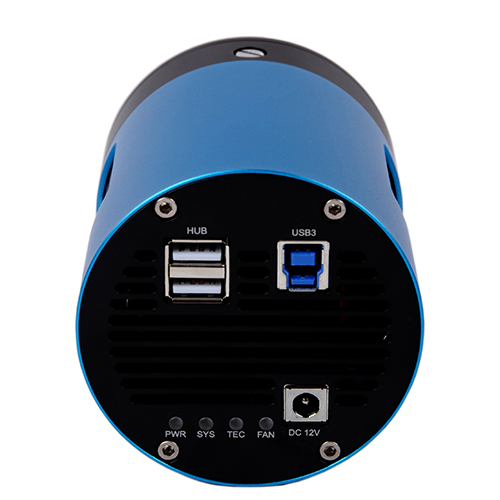

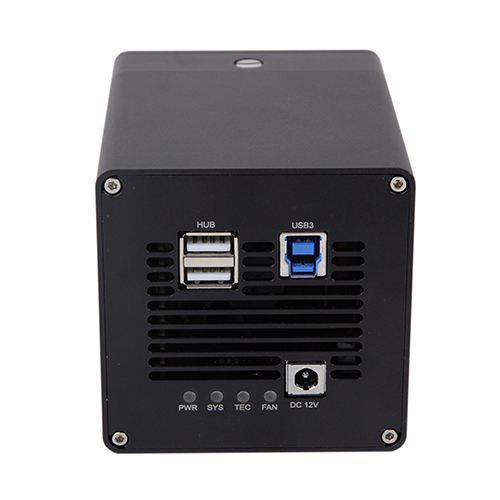

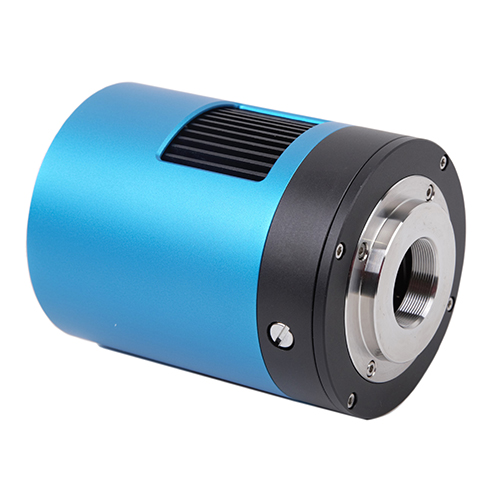

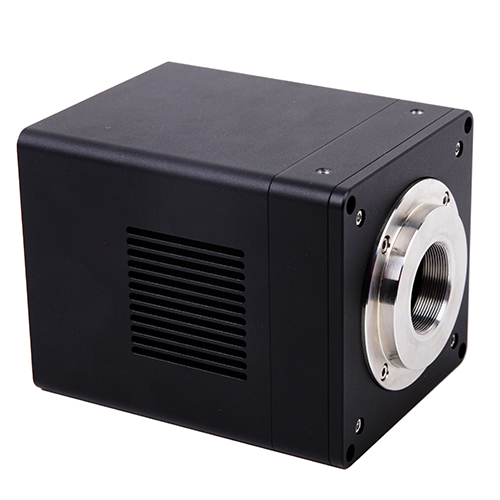

Dimension of Camera
The body, made from CNC alumnium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
