Brief Introduction

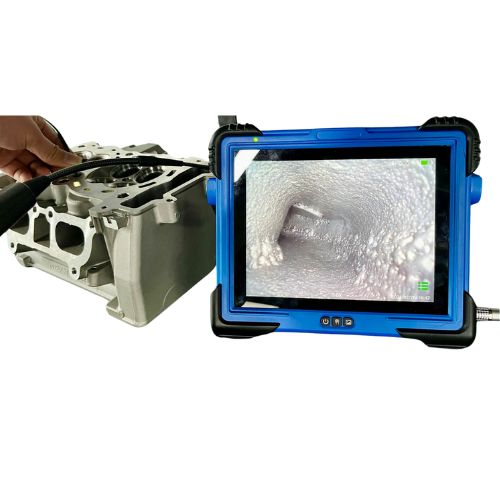

Our Optike Brand Industrial Rugged Video Borescopes,a fantastic tool for visual inspections in situations where the area that needs to be inspected is difficult or impossible to view without disassembling. Numerous industries, including aerospace, precision casting, energy and power automobile manufacturing, bridge construction, etc., use these bore scopes. We provide a variety of bore scopes, each with unique specifications.Our Video Borescope features a diameter of 2.0mm, 2.4mm, 2.8mm, 3.9mm, 4mm, 5.9mm, 8mm, and different lengths. The Dual View technology eliminates the need for threaded tips. You can get a single scope with two independent cameras and toggle between views without removing the scope from the inspection. We are offering 4-way joystick articulation, image and video capture, 4-hour battery life (8.4V) combined with a compact, portable, and durable design. It easily displays and captures crystal-clear video and still images, and it does so using a lightweight and user-friendly compact design. It is widely used, can be used for Detection and diagnosis of engine cylinder, fuel engine, silencer, transmission systems, differential, water tanks, fuel tank, gearbox, coke, block, etc.
Modular design
After months of use, the steel strings will extend, and the tip’s articulation may not bend as widely. In this case, the probe may need to be replaced, but this product has a special feature. If the probe is unable to bend after a few months, there is no need to return it to the factory for repairs. Anyone can easily fix articulation within 2 minutes with a screwdriver in no time.
Types of Probes & Lens
- We are offering a modular design the host or probes are detachable and have different diameters.

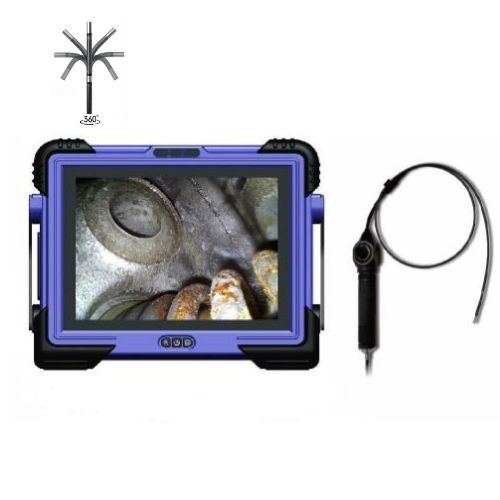

- Newly designed articulation mechanism, jovial control, 360-degree direction Compatible with (Optional )2mm, 2.4mm, 2.8mm, 3.9mm, 4.0mm, 5.8mm, 6.0mm, 8mm self-compatible with different probes.
- Pixels of lenses: 160000/300000/1 million/2 million are self-compatible.
- we are offering front/side view, two in one, twin lines, short/far focus (According to the Customer Requirements) 4-way joystick articulation, 4-hour battery life combined with a compact, interchangeable insertion tubes, and a single camera option .
- It has a Single lens and fiber optical light
Dual lenses Diameter 4/5.8mm & invented twins lenses (Optional Lens Diameter )
Our Product having different Kind of Probe Diameter we will provide the probe to Custumers According to the their Reuirement

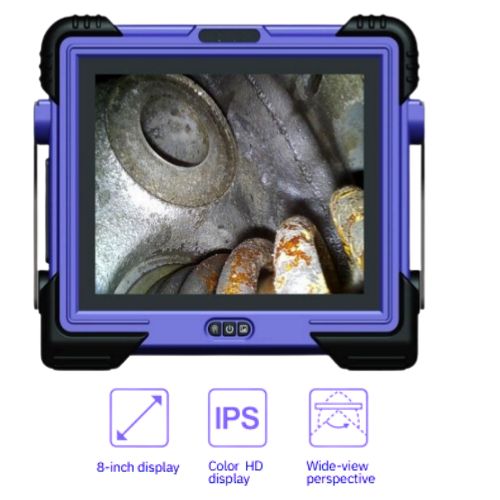

Rugged Housing Touch Screen
All these models having Rugged Housing Touch Screen Effectively restores real colors and presents more vivid images. A larger visual angle and good image quality in all directions effectively reduce eye fatigue and improve observation comfort. The touch screen is sensitive and easy to operate, which greatly improves the efficiency.
5,00,000pixel HD Industrial Camera
With a built-in high-quality image sensor, delivers clear and richer images. The video image is smoother, and the picture has no delay and drag, which is convenient for rapid and accurate identification of tiny defects.
Software
- Dual lens can displayed simultaneously just figure, top the Icon for switch or hidden.
- Front and side view both are mega pixels display on the monitor simultaneously, the real time, picture for flow inspection.
- twin lenses with short/long focus for narrow/wide space inspection quickly to get the flow and no waste time to change the lens.
- One host working for different insertion tubes with different pixels.
File Manger
1.Reset file storage path, new folder create, Rename, Copy delete
2. Touch control Key board with multi modes optional
- Unlimited preset annotation as water mark in the picture, so it helps you find the inspection flow at the spot.
- Double -Top to change the location of the watermark in the picture.
- The replaceable high-capacity rechargeable lithium battery and charger are added to ensure the long-term service time.
- The 32GB of memory is used to save all of the data in JPG format.
Built in Bluetooth, WiFi Modules
These modules allow quick and easy image and video file transfer from the videoscope to a phone.
Rubber-coated Anti-collision Design
The four corners of the monitor adopt rubber coated anti-collision design for more shock and fall resistance, making the unit more durable and rugged
Text and Marking
| Sl No | Product Description | Specifications |
| 1 | Display Screen Size | 8”/5.1″/ 3.5″ LCD in a Rugged Housing |
| 2 | Probe Diameter | 2mm, 2.4mm, 2.8mm, 3.9mm, 4.0mm, 5.8mm, 6.0mm, 8mm |
| 3 | OutPut | USB /HDMI |
| 4 | Storage | 32GB |
| 5 | Pixel | 160000/300000/1 million/2 million are self-compatible. |
| 6 | Probe Lenght | 1m/2m/3m/4m/5m/8m/10m (customized) |
| 7 | DOF | 3mm to 100mm |
| 8 | DOV | 0 Degree – Front View front/side view, two in one, twin lines, short/far focus |
| 9 | Viewing Angle | Front |
| 10 | Illumination | High Brightness Fiber optic Light Engine/Back-Mounted LED, Optical- Fiber Lighting 12000Lux, LED life span 30000hours |
| 11 | Operating Temperature | -30° – 80°C |
| 12 | Articulation | 90° articulation on all four direction-Left, right, top and bottom |
| 13 | Image Sensor | CMOS |
| 14 | Touch Screen | Yes, LCD touch screen Display |
| 15 | Display Resolution | 1024 x 768 HD Screen |
| 17 | Camera type | Video Camera |
| 18 | Brightness control | 8 Level with Auto Adjustment |
| 19 | Internal Storage Type | Micro SD |
| 20 | Internal Storage Capacity | 32 GB |
| 21 | Connectivity | USB/WiFi |
| 22 | Battery capacity | 6000 mAh |
| 24 | Platform type | Desktop based |
| 24 | Types of Licence | Perpetual |
| 25 | Number of Batteries required for operation | Single Battery |
| 26 | Operating Humidity (Tip) | -30° – 80°C |
| 27 | Power source | 230 Volt + 50Hz |
| 28 | Battery Life | 4-hour battery life |
| 29 | Software | Picture to picture ,Self-Adaptation for lens: Phots, Video preview, pic Frozen, zoom in/ out, rotate, edit, rename, doodle remark. |
| 30 | Joystick | Mechanical control,360° All directions. |
