Camera Adaptor High Resolution

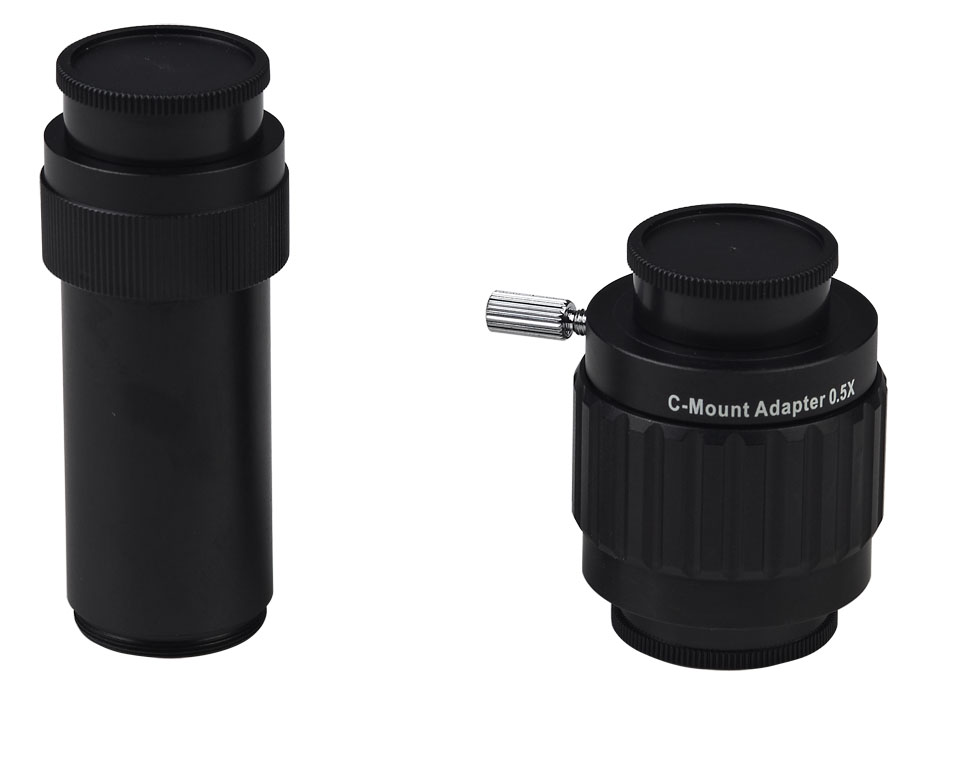

This is a 0.5X focus-adjustable Camera Adaptor High Resolution stereo for microscope head. The microscope side has a male 28mm thread, and the camera side is standard 25.4mm C-mount.
| SKU: | KMA111 |
Product Description
Camera Adaptor High Resolution
This is a 0.5X focus-adjustable Camera Adaptor High Resolution stereo for microscope head. The microscope side has a male 28mm thread, and the camera side is standard 25.4mm C-mount.
In order to attach a digital camera to the trinocular port (a monocular microscope has a single eyepiece, binocular has 2 eyepieces and trinocular has 2 eyepieces and a separate camera port) of a microscope you need the correct mount / adapter. Nearly all dedicated microscope digital cameras use a standard c-mount. A c-mount is 1″ (25.4mm) in diameter with 32 threads per inch. C-mount adapters are microscope specific so one end is a standard c-mount thread and the other depends on the make and model of the microscope.
Features & Specifications :
- Power: 0.5X
- Mounting Size on Camera Side: 1″ (25.4mm) in diameter
- Mounting Size on Microscope Side: 1-1/8″ (28mm) in diameter
