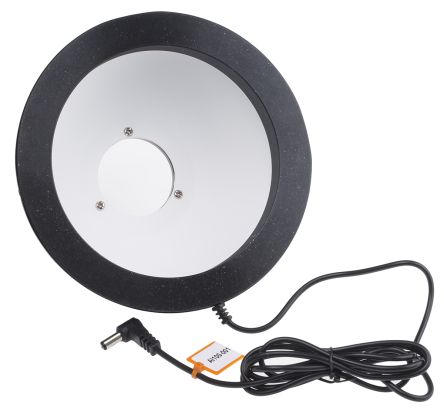

Diffused Dome Light

Diffused Dome Light

It creates a diffused and UV-free dome of cool white 6000K-7000K light for imaging specimens which would otherwise suffer from over exposure under standard lighting. Diffused illumination also brings out more surface artifacts and details which wash out under normal conditions, making it ideal for gem classification, QA inspections, PCB repair, jewelry manufacturing and more.

SKU:KMA216

Product Description

In addition, the Diffused Dome Light and power source are ESD-safe and work well in static-free environments where delicate electrical components are being handled.The dome’s upper attachment point is 61mm in diameter to fit most stereo microscopes and the base expands out to 160mm outside diameter to accommodate large specimens. The height of the dome measures 88mm and requires at least 95mm of vertical space for adequate clearance from the microscope stage. The power supply accepts input voltage from 96V-265VAC and features variable-intensity control and the 50,000 hour LED service life ensures years of trouble-free, energy-saving performance.

Specifications

  • 8, 6watt LEDs with light intensity control
  • Compact design of Diffused Dome Light
  • 2.6″ I.D.
  • Fan cooled (low noise)
  • Color temperature: 6000º – 7000ºKelvin
  • Lamp life: 50,000 hours
  • Power Input: 90-265VAC
  • Power Output: 30VDC
