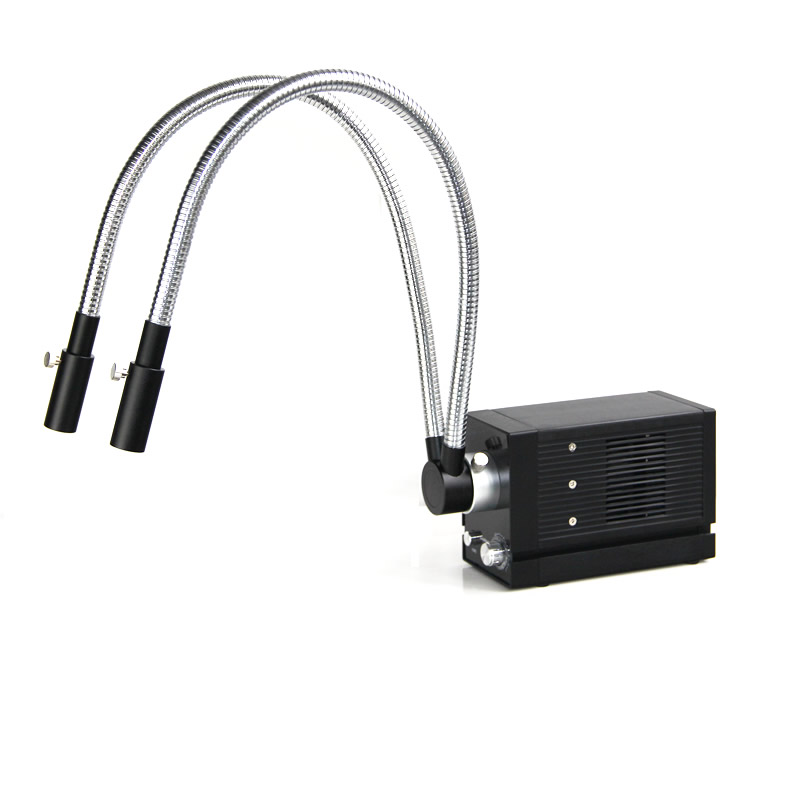

Dual Gooseneck TT FO LED High Intensity Light with FO Cable & Focus Lens

The fiber optic microscope illuminator provides strong, even and cool daylight illumination. It utilizes overall heat sink, high
brightness LED and a unique condenser system to achieve high power output under the high brightness and long life. The light
source has a built-in heat filter for cooling, a specially designed slot for color filters, and solid state controls for full adjustment of intensity. Compact appearance and side groove design make it easy to fix. S3000’s 20W power consumption is good to save
energy. AC/ DC power supply, constant current drive and knobdimming control ensure the us.

SKU:KMA213

Product Description

The fiber optic microscope illuminator provides strong, even and cool daylight illumination. It utilizes overall heat sink, high
brightness LED and a unique condenser system to achieve high power output under the high brightness and long life. The light
source has a built-in heat filter for cooling, a specially designed slot for color filters, and solid state controls for full adjustment of intensity. Compact appearance and side groove design make it easy to fix. S3000’s 20W power consumption is good to save
energy. AC/ DC power supply, constant current drive and knobdimming control ensure the us.

Features

  • Higher power output, body cooling design, longer life
  • Higher brightness LED chip, special focus system
  • Low power consumption, less than 15w
  • AC or DC power supply
  • Smaller body, side fix slot design

Specifications

  • Power supply – AC 96-240V power adapter, 50/60Hz DC24V 1.5A
  • Power consumption – 15W Max.
  • Dimming control – Continuous dimming/ 0-5V analog control / PWM 200Hz 5V
  • Av. illuminance (lx) – Approx. 143,000lx
  • Color tempreture – 5000K-8300K
  • Av. LED life – Approx. 30,000 hours
  • Cooling system – Body + high speed fan
  • Operating condition – 0℃~45℃ / 20%~80% RH
  • Net weight – 840g
  • Dimensions – 186 x 72 x 104mm
