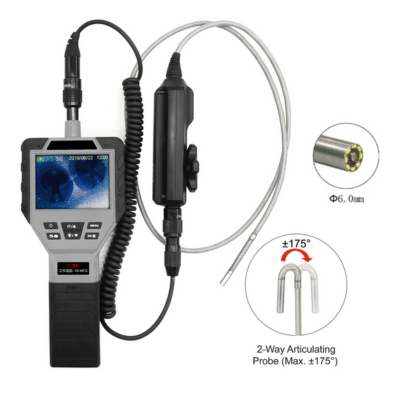

2-Way Articulating HD Video Borescope
An Optike Industrial Borescope Inspection, a fantastic tool for visual inspections in situations where the area that needs to be inspected is difficult or impossible to view without disassembling. Numerous industries, including aerospace, precision casting, energy and power automobile manufacturing, bridge construction, etc. Mainly This is a handheld borescope, can realize real-time & non-destructive inspection of small spaces; widely used in the inspection fildes of Automotive, Pipelines, Machinery & Equipment, Chemical etc use these bore scopes. We provide a variety of bore scopes, each with unique specifications.
Product Specifications
- 3.5″ LCD Display 1M Pixels
- 6.0 mm Dia IP67 SS 2 Way Articulating Probe.
- 1000mm Length Semi rigid Probe.
- 6 LED’s
- SD Card for Image & Video Capture.
- Rechargeable Li-ion Battery.
- 3-5 Hours Backup.
- Portable carry case.
| SKU: | KAB05HD |
Product Description
This is a handheld bore scope, can realize real-time & non-destructive inspection of small spaces; widely used in the inspection fields of Automotive, Pipelines, Machinery & Equipment, Chemical etc.
Features
- High definition camera
- Full-view LED screen
- Digital signal
- 2-Way articulating industry snake tube
- Φ 6.0mm dia. camera 1,000,000 pixels.
- With image rotation function
- With photo capturing and video recording function
- LED adjustable in 3 levels
- Lithium battery
Product Features
| Image sensor | CMOS sensor |
| Effective pixel | 1280x720 |
| Depth of Focus (DOF) | 20mm-50mm |
| View angle | 60 ̊ |
| Out-braided stainless steel tube length | 1000mm |
| LED Adjusting | 6 lamps, illumination can be adjustable in 3 levels |
| Working current | ≤130MA |
| Screen | 3.5 inch full-view LED screen |
| Battery | 2000mAh lithium battery |
| Working current | ≤400mA |
| Standby current | <40 microamp |
| Max. power | <2W |
