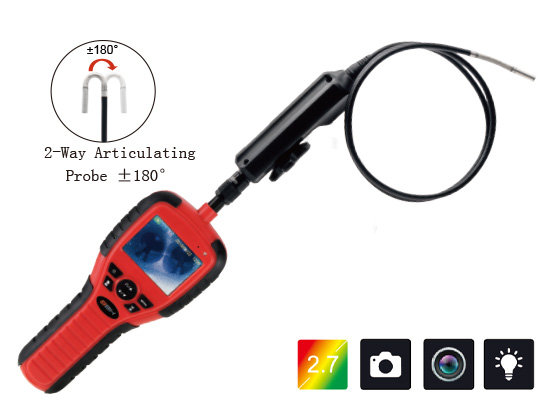

2-Way Articulating Video Borescope
An Optike Industrial Borescope Inspection, a fantastic tool for visual inspections in situations where the area that needs to be inspected is difficult or impossible to view without disassembling. Numerous industries, including aerospace, precision casting, energy and power automobile manufacturing, bridge construction, etc.
This is a handheld borescope, can realize real-time & non-destructive inspection of small spaces; widely used in the inspection fildes of Automotive, Pipelines, Machinery & Equipment, Chemical etc.
Specifications
- 2.7″ LCD Display 300k Pixels
- 6.0 mm Dia IP67 SS 2 Way Articulating Probe.
- 1000mm Length Semi rigid Probe.
- 6 LED’s
- 4 x AA Rechargeable Battery.
- 3-5 Hours Backup.
- Portable carry case.
SKU: | KAB07 |
Product Description
This is a borescope, can realize non-destructive & real-time inspection of narrow spaces; widely used in the inspection fildes of Automotive, Pipelines, Machinery & Equipment, Chemical etc.
Features
- 2.7 ̋ screen
- 2-Way articulating probe ±175° can inspect any hard-to-reach
- space without dead corner

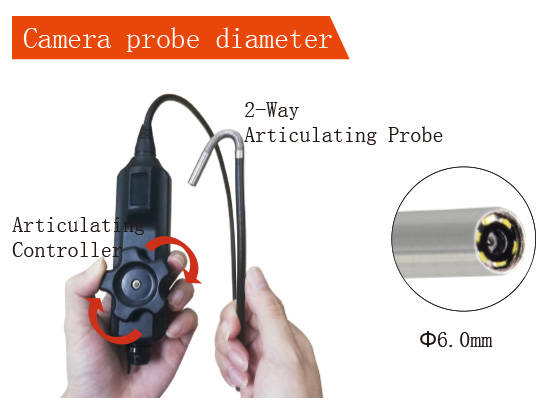

- Φ6.0mm dia. camera 300,000 pixels.
- Screen brightness & 6*LED brightness can be adjusted
- With image rotation function
- With photo capturing and video recording function
- TF card Max 32G
Product Features
Screen Size | 960 x 240 2.7 inch screen |
Image Sensor | CMOS sensor |
Effective pixel | 640x480 |
Depth of Focus (DOF) | 20mm-50mm |
View angle | 68 ̊ |
Tube Length | 800mm |
LED Adjusting | 6 lamps, illumination can be adjustable in 7 levels |
Working current | ≤130MA |
Battery | 4xAA |
Standby current | <40 microamp |
Max. power | <2W |
