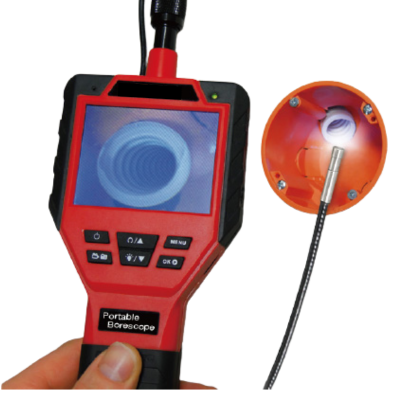

Inspection Video Borescope
An Optike Industrial Borescope Inspection, a fantastic tool for visual inspections in situations where the area that needs to be inspected is difficult or impossible to view without disassembling. Numerous industries, including aerospace, precision casting, energy and power automobile manufacturing, bridge construction, etc.
This is a borescope, can realize non-destructive & real-time inspection of narrow spaces; widely used in the inspection fildes of Automotive, Pipelines, Machinery & Equipment, Chemical etc.
specification
- 3.5″ LCD Display 450k Pixels
- 5.5 mm Dia IP67 Flexible Probe.
- 1000mm Length Semi rigid Probe.
- 6 LED’s
- SD Card for Image & Video Capture.
- Rechargeable Li-ion Battery.
- 3-5 Hours Backup.
- Portable carry case.

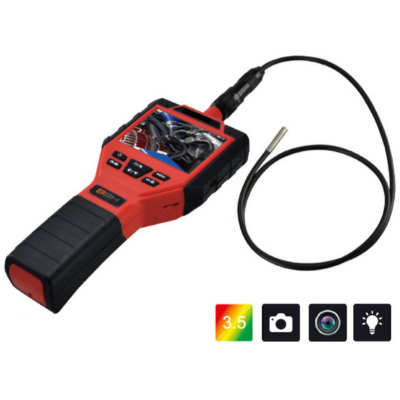

| SKU: | KVB05B |
Product Description
This is a borescope, can realize non-destructive & real-time inspection of narrow spaces; widely used in the inspection fildes of Automotive, Pipelines, Machinery & Equipment, Chemical etc.
Features
- 3.5” inch LCD
- Overheat protection, automatic power off
- High definition camera, semi-rigid snake tube
- bending resistant
- Snapshot and recording, storage TF card Max 32G
Product Features
| Screen Size | 3.5 inch screen |
| Camera Diameter | Φ 5.5mm |
| Effective pixel | 640x480 |
| Depth of Focus (DOF) | 30mm-80mm |
| View angle | 60 ̊ |
| Tube Length | 1m standard (Max. 20m) |
| LED | 6X0402 LED |
| Battery | 2000mAh lithium battery |
| Working current | ≤250mA |
| Standby current | <40 microamp |
| Max. power | <2W |
