Industrial Wireless Video Borescope – KVB7810A

Industrial Wireless Video Borescope
  • 3.5″ Wireless LCD Display 450k Pixels
  • 3.9 mm Dia IP67 Flexible Probe.
  • 1000mm Length Semi rigid Probe.
  • 2 LED’s
  • SD Card for Image & Video Capture.
  • Rechargeable Li-ion Battery.
  • 3-5 Hours Backup.
  • Portable carry case.
SKU:KVB7810A

Product Description

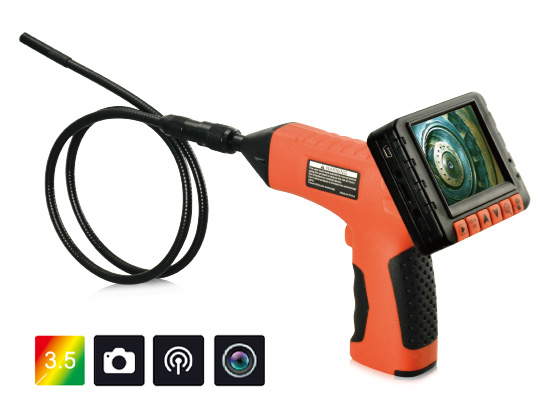

Industrial Wireless Video Borescope – KVB7810A
This 3.5 inch portable borescope inspection camera supplier , 2.4Ghz wireless transmission function,With recording function. Can also create photos and videos. Cutting tube or flexible tubes are available. The diameter has four sizes for your choice. 3.9 mm / 5.5 mm, semi-rigid / removable tube can withstand bending and easily fasten. The camera tube can penetrate through the combustion chamber or the valve to remove or test the carbon Depot. It is widely used, can be used for Detection and diagnosis of engine cylinder, fuel engine, silencer, transmission systems, differential, water tanks, fuel tank, gearbox, coke, block, etc.Remote work efficiency, and also avoid the damage caused by repeated disassembly .



Product features

Features:
Item Name: 3.9mm Industrial Video Drill Scope with 8-fold Magnification for Aerospace / Automotive / Chemical / Electronics
Screen Size: 3.5 inch TFT LCD screen
Camera Diameter: 3.9mm / 5.5mm / 9.0mm / 17.0
Pixel: 0.3 Mega
Waterproof: IP67 waterproof, acidic, alkaline resistance
Standard tube length: 1m standard tubes, can be adjusted 1m-20m semi-rigid tube or flexible tubes
Signal Transmission: 2.4G Wireless Video Ttranmission, Wired Video Ttranmission
Focus Distance: 30-80mm
Package: PE toolbox or color box
Place of Origin: Shenzhen, Guangdong, China
With the parameter:
Image sensor VGA CMOS Sensor
 Effective pixel720 (H) * 625 (V) (N),
 Focus Distance 30mm-80mm
 Viewing angle 60 degrees Fov (D)
 Probe Diameter5.5mm
 LED-lighting6 pieces of white lamps, lighting can be adjusted in 6 levels
 Monitor
Screen 3.5 “TFT LCD QVGA 480 * 234 16m color
 Function Image can be deposited with 180 degrees rats
 LCD screen illumination can be adjusted in 3 levels
 Automatic recognition of NTSC / PAL
 Ten minutes without processing, the TFT automatically turns into power-saving mode
 language English, French, German, Italian, Spanish, Portuguese, Simplified Chinese, Japanese, Korean, Russian
 host Voltage: 5V
 Workflow: 600ma
 Charger / Power Output voltage: 5V
 Import Voltage: 110-220V
 Input current: 2A
 Power: 4 * AA battery, power supply can support 4-5 hours
 Standard accessory 1 * hook, 1 * magnet, 1 * mirror

Product application

Application:

Extend Your Hands & Eyes !
1.Aerospace:Inspect and Repair the blade of aviation engine
2.Military equipment:Inspect and Repair the submarine,tank armored car and Barrel
3.Car repair and maintenance:Inspect and Repair the car frame,chassis,engine etc.
4.Security:security control in Custom,station.Airport etc.
5.Architectural:Inspect and Repair pipeline,circuity,wall etc
6.Electric power generation:Inspect and Repair the turbine of the nuclearpower,heatingpower,  Waterpower and windpower equipment
7.Oil and nature gas :Inspect and Repair the pressure vessel and steam generator
8.Electric equipment and electronic industry:Inspect the production equipment and product’s R&D.
9.Sea and River:fish culture view and hydrology research
10.Science education and Laboratories:View animal’s in the hole and karst cave .
