OptoMag 23E- Economy Stereo Zoom Microscope 7x to 45x

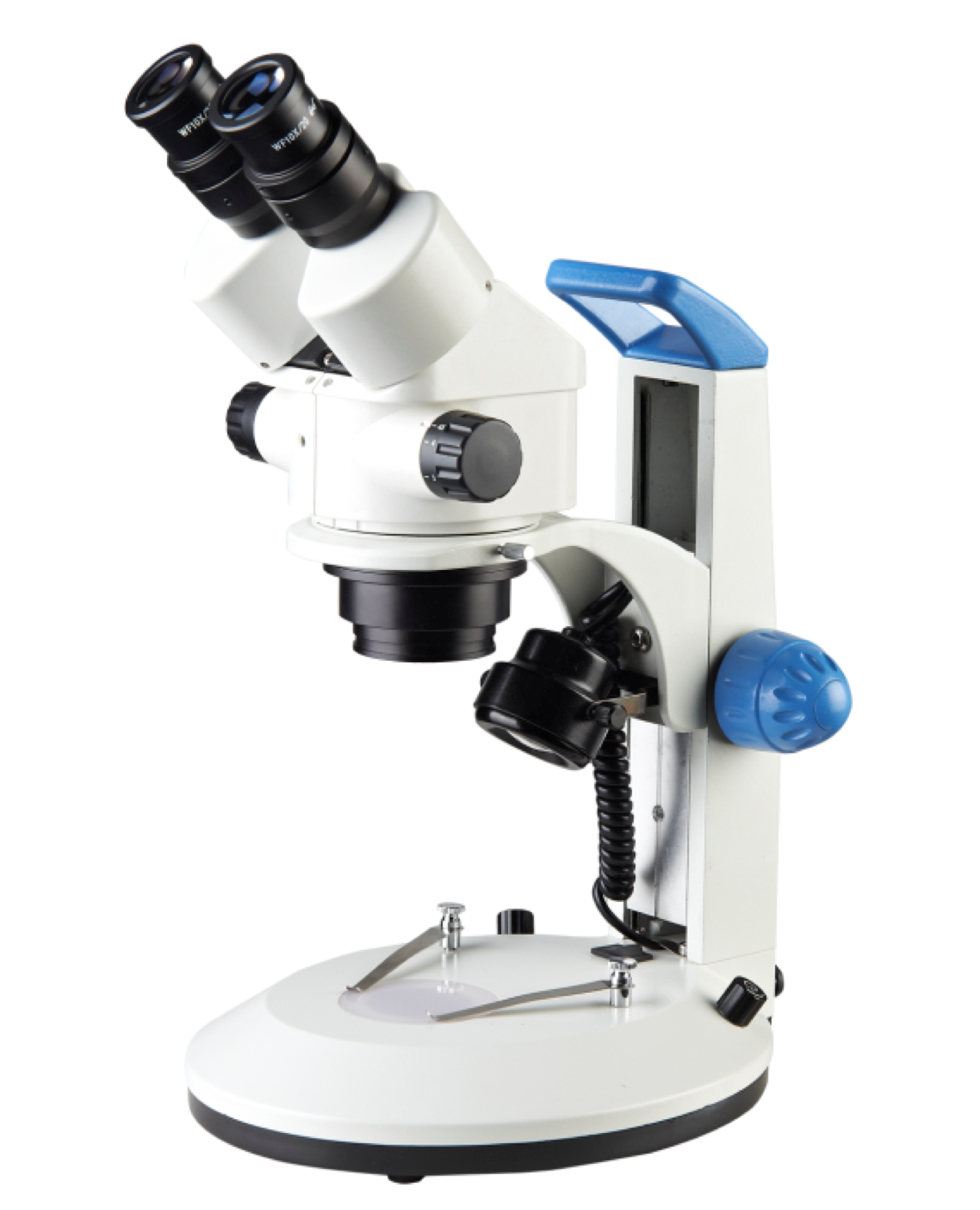

OptoMag 23E – Economy Stereo Zoom Microscope
(With Top LED Light &Bottom LED Light)
The OptoMag23E Stereo microscope has a side-mount zoom control system that is very easy to operate. It offers excellent 3D images with high resolution. Once brought into focus, images remain clear throughout the whole zoom range. It has a large field of view, a long working distance, and a large depth of field. A wide variety of optical lenses with different stands are available. It is widely used in various applications, such as the assembly and inspection industries, educational, clinical, and research purposes.
| SKU: | KOM23E |
Product Description
Product : OptoMag 23E Stereo Zoom Microscope
Product Code : KOM23E
- The OptoMag23E Stereo Zoom Microscope has a side-mount zoom control system, is easy to operate, and is perfect for use with bonders and probe arms.
- The optics of this SM series microscope feature a large zoom magnification range, which produces sharp, crystal-clear stereo images while providing a generous working distance.
- It provides excellent 3D images with high resolution.
- The microscope comes with the standard super-wide field, high eye point WF10X eyepiece, enabling observation over a wide area and being convenient for operators who wear eyeglasses.
- Once brought into focus, images remain clear throughout the whole zoom range.
- It has a large field of view, a long working distance, and a large depth of field. A wide variety of optical lenses and stands are available.
- Designed as a modular system with all metal construction.
- It is widely used in various applications, such as the assembly and inspection industries, educational, clinical, and research purposes.
Product Specification
– Excellent 3D images with high resolution.
– Zoom Range: 0.7x – 4.5x, Zoom ratio 1: 6.5
– Total Magnification – 7x to 45x
– Light Stand with built-in illumination
– Field of View : 33mm to 5.1mm
– Once brought in focus, images remains clear through out whole zoom range.
– New side-mounted zoom controls Working distance: 105mm (without auxiliary lens)
– Interpupillary Distance Adjustment : 55mm – 75mm.
– Binocular Tube : Inclined 450 degree.
– Dioptre adjustment: +/- 5 Dioptre
– Binocular Body: can be rotated a full 360 degree.
– LED light is integrated at both top and bottom.
– Accurate alignment ensuring a fatigue-free comfortable observation.
– High resolution with great flatness and contrast.
– Crystal clear original true colour images.
– Full optical glass elements.
– Precise ground glass lens.
– Metal track stand finished with stain resistant enamel.
Optional Accessories
Product Features
| Resolution | Excellent 3D images with high resolution. |
| Zoom Range | 0.7x – 4.5x, Zoom ratio 1: 6.5 |
| Magnification | 7x to 45x |
| Stand | Economy Stand |
| Field of View | 33mm to 5.1mm |
| Dioptre adjustment | +/- 5 Dioptre |
| Body | Binocular Body can be rotated a full 360 degree |
| Interpupillary Distance | 55mm to 75mm |
| LED | Transmitted (bottom) and reflected (Top) Illumination |
| Working Distance | 105mm |
