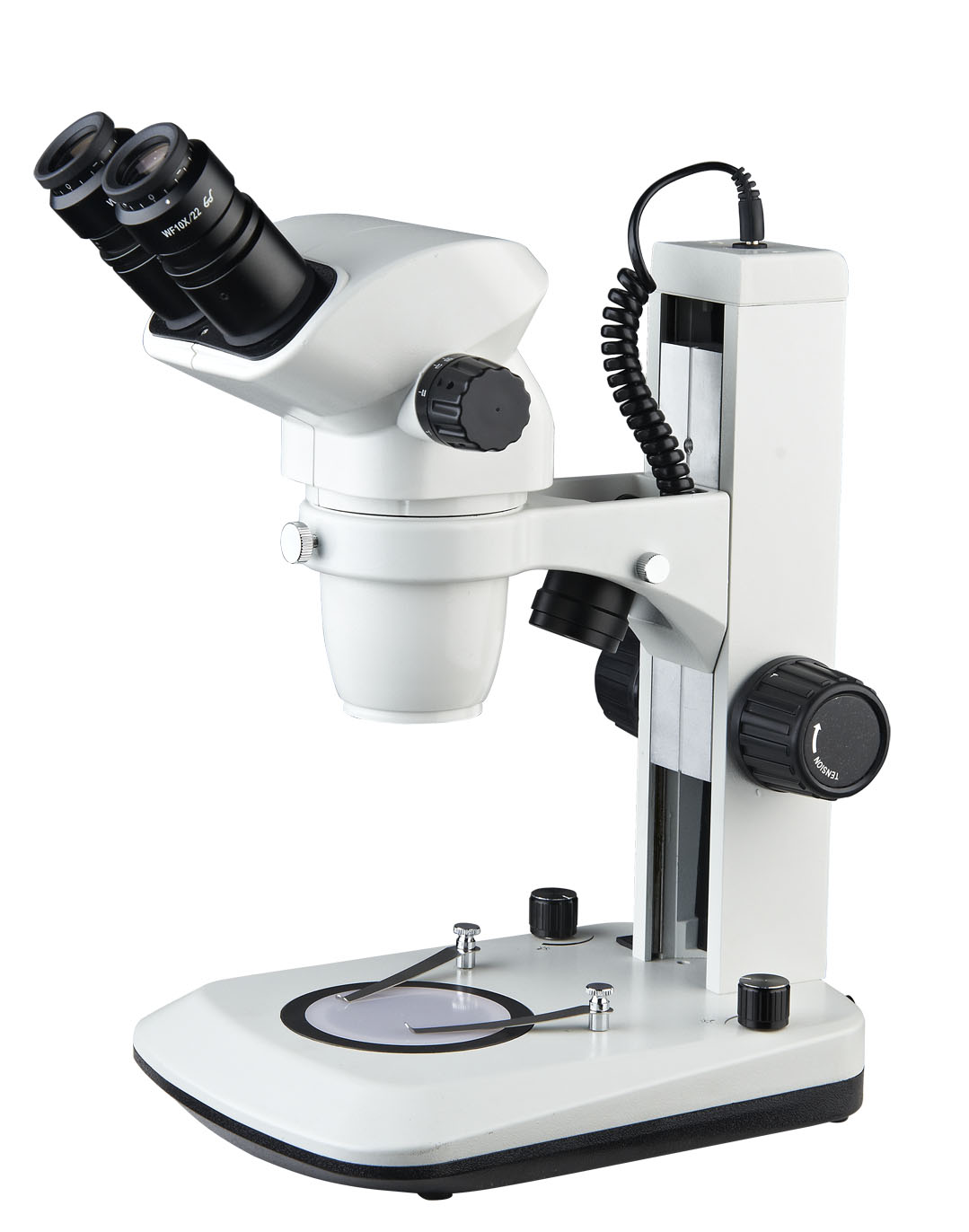

OptoMag 23ST – Stereo Zoom Microscope 7X-45X

OptoMag 23ST – Stereo Zoom Microscope
(With Top LED Light & Bottom LED Light)

The OptoMag 23ST Stereo Zoom Microscope is a fully coated optical system with super-high resolution. Once brought into focus, the image remains clear and sharp throughout the whole zoom range, and it provides a 3D image with high resolution. It has a large field of view, a long working distance, a large depth of field, and a wide variety of optical lenses and stands. It is ideally suited for industrial as well as biological research where high precision, maximum working distance, and large field coverage are required.

SKU:KOM23ST

Product Description

Product:OptoMag 23ST – Stereo Zoom Microscope
Product Code : KOM23ST

  • OptoMag23ST Stereo Zoom Microscope has a side mount zoom control system, it is easy to operate, perfect for use with bonders and prober arms.
  • This high quality 7X-45X binocular stereo zoom microscope comes with SUPER wide field optics and a track stand with dual LED illuminators.
  • The optics of this Stereo Microscope series microscope features a large zoom magnification range, which produces sharp, crystal-clear stereo images, while providing a generous working distance.
  • It provides excellent 3D images with high resolution.
  • Once brought in focus, images remains clear throughout whole zoom range.
  • It has large field of view, long working distance, and big depth of field, a wide variety of optical lenses and stands are available.
  • Designed as a modular system, with all metal construction.
  • It widely used in the various applications, such as assembly and inspection industries, educational clinical and biological research purposes.
  • OptoMag 23ST Stereo Zoom Microscope come with standard supper wide field, high eye point WF10X Eyepiece, enabling observation over a wide area and is convenient for operators who wear eye glasses.

Product Specification

– Excellent 3D images with high resolution.
– Zoom Range: 0.7x – 4.5x, Zoom ratio 1: 6.5
– Magnification – 7x to 45x
– Field of View : 33mm to 5.1mm
– Once brought in focus, images remains clear through out whole zoom range
– New side-mounted zoom controls Working distance: 108mm (without auxiliary lens)
– Interpupillary Distance Adjustment : 55mm – 75mm.
– Binocular Tube : Inclined 450 degree.
– Dioptre adjustment: +/- 5 Dioptre
– Binocular Body: can be rotated a full 360 degree
– Brightness-adjustable with separate dimmer controls
– Working Distance: 108mm.
– Head: 45 degree inclined binocular.
– LED light is integrated at both top and bottom.
– High resolution with great flatness and contrast.
– Crystal clear original true colour images.
– Metal track stand finished with stain resistant enamel.

Optional Accessories

Product Features

ResolutionExcellent 3D images with high resolution
Zoom Range0.7x – 4.5x, Zoom ratio 1: 6.5
Magnification7x to 45x
StandTrack Stand with built-in illumination
Field of View33mm to 5.1mm
Dioptre adjustment+/- 5 Dioptre
Working Distance105mm
LEDTop LED Light and Bottom LED Light
Interpupillary Distance55mm -75mm
