Product Description

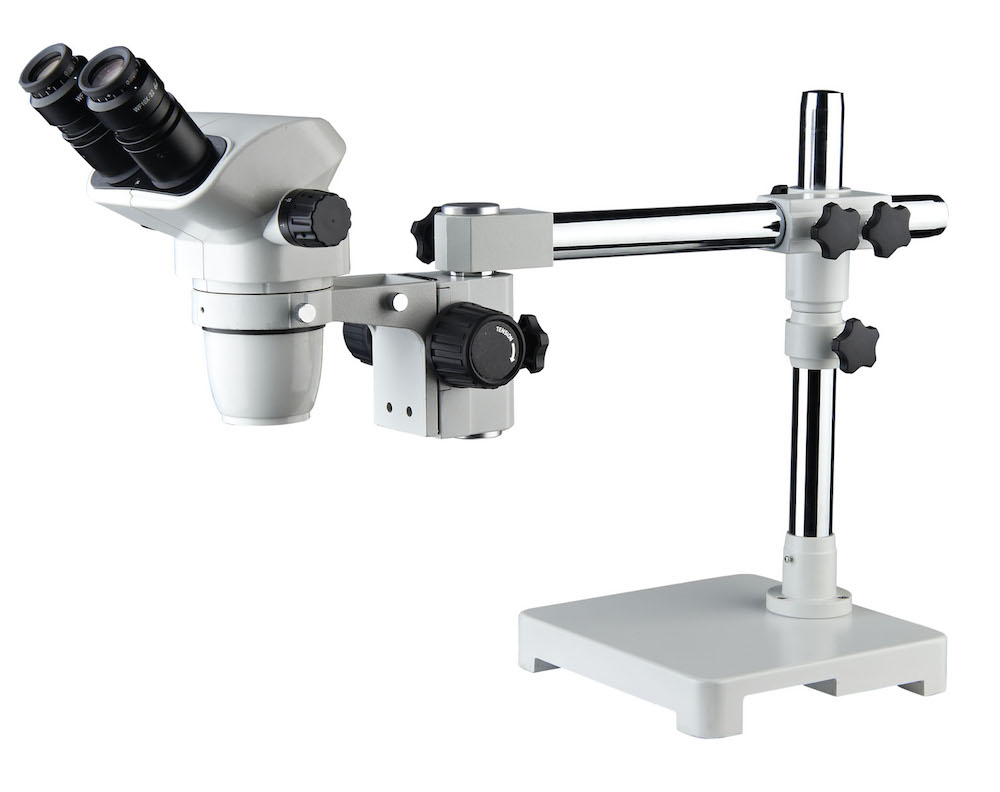

Product:OptoMag 23SB – Stereo Zoom Microscope
Product Code:KOM23SB

• The OptoMag23SB Stereo Zoom Microscope has a side-mount zoom control system that is easy to operate and perfect for use with bonders and probe arms.
• Once brought into focus, images remain clear throughout the whole zoom range, and it provides excellent 3D images with high resolution. It has a large field of view, a long working distance and a large depth of field.
• It provides excellent 3D images with high resolution
• The sturdy single-arm boom stand offers solid support with excellent flexibility.
• Designed as a modular system with metal construction.
• This system is a perfect microscopy unit for industrial and/or biological laboratory applications. It is an ideal instrument for researchers, gemmologists, manufacturing engineers, and anyone in semiconductor and electronics industries.
• The microscope comes with the standard super-wide field, high eye point WF10X eyepiece, enabling observation over a wide area and being convenient for operators who wear eyeglasses.
• The optics of this SM series microscope feature a large zoom magnification range, which produces sharp, crystal-clear stereo images while providing a generous working distance.

Product Specification

– Excellent 3D images with high resolution.
– Zoom Range: 0.7x – 4.5x, Zoom ratio 1: 6.5
– Magnification – 7x to 45x
– Boom Stand – Without Light Source
– Field of View : 33mm to 51mm
– Once brought in focus, images remains clear through out whole zoom range
– New side-mounted zoom controls Working distance: 108mm (without auxiliary lens)
– Interpupillary Distance Adjustment : 55mm – 75mm.
– Binocular Tube : Inclined 450 degree.
– Dioptre adjustment: +/- 5 Dioptre
– Binocular Body: can be rotated a full 360 degree
– Super high-resolution with great depth-of-field and contrast.
– Extremely sharp and clear images
– Eyepieces come with adjustable dioptres.
– Sharp stereo erect images over a wide field of view.
– Crystal clear original true colour microscope images.
– Full optical glass elements.
– Precise ground glass lenses.
– Adjustable interpupillary distance and Flexible Boom Stand.

Optional Accessories

Optional Auxiliary Objective Lens 2.0x – KMA101

Standard LED Ring Light with Dimmer 64 LEDs 6/8cm

Microscope Eyepiece 20x

Fluorescent Ring Light for Microscope 8w with Spare Tube

UV Free & ESD Safe Ring Light (Small)

Boom Stand – KMA309
