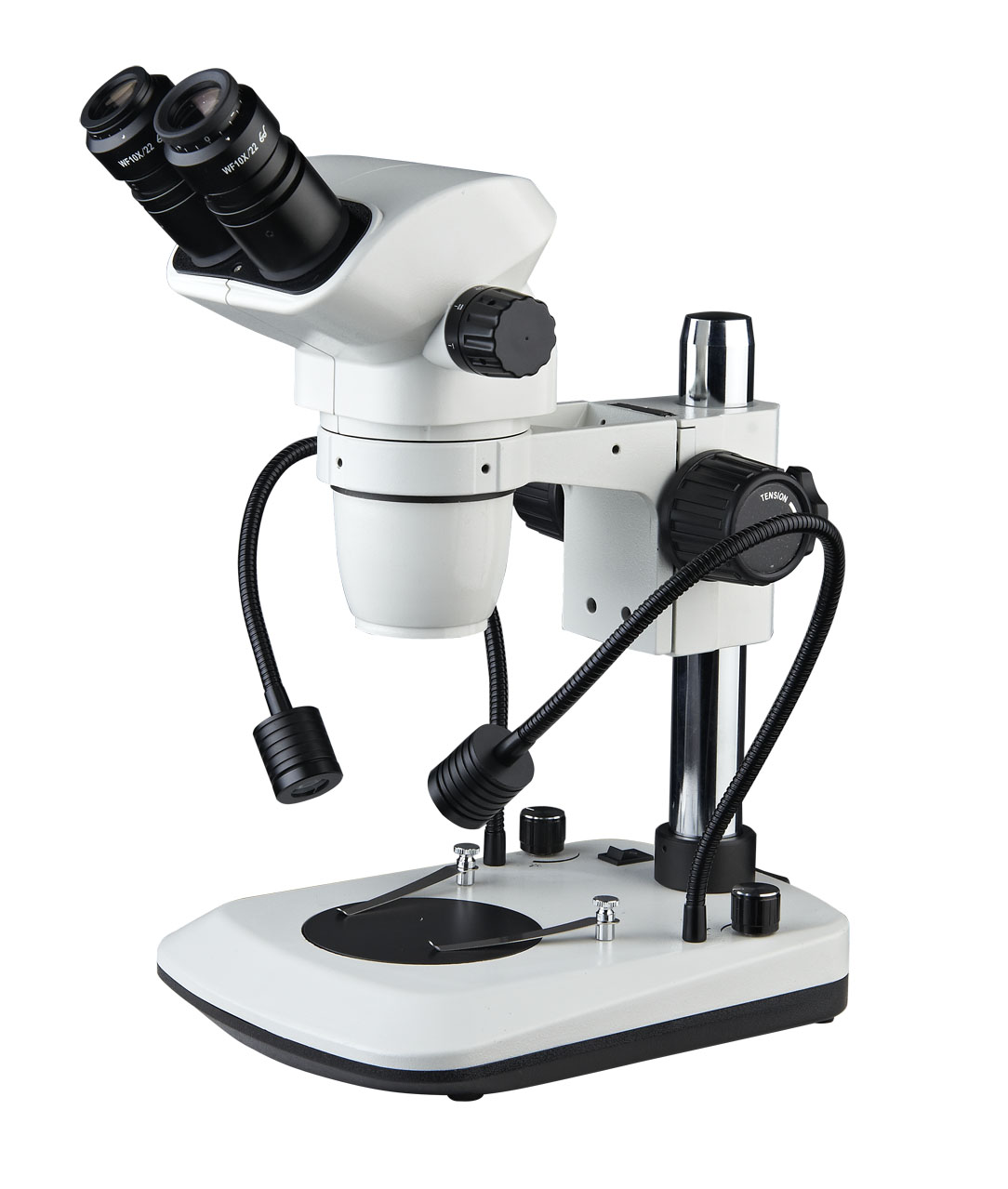

Product : OptoMag 23SP Dual Gooseneck Stereo Zoom Microscope

Product Code : KOM23SD

• Binocular stereo microscope with dual gooseneck LED lights and 7X and 40X magnification powers on the dual gooseneck stand, providing clear, sharp images. It comes with a binocular head, wide field eyepieces, two incident lights, and a dual gooseneck stand.
• The 45-degree inclined eye tubes and rubber eye guards ensure easy observation. The dual gooseneck stand allows you to turn the microscope head around two different axes. This microscope offers high resolution, a wide field of view, and a large working distance of 108 mm. The incident lights shine down on to objects for the observation of surface details and fine structures.

• This microscope is perfect for circuit board repair, soldering, and dental applications. It is an ideal instrument for dentists, gemmologists, collectors, and anyone in the semiconductor and/or electronic industries.

Product Specification

– Excellent 3D images with high resolution.
– Zoom Range: 0.7x – 4.5x, Zoom ratio 1: 6.5
– Magnification – 7x to 45x
– Field of View : 33mm to 5.1mm
– Two Flexible Gooseneck LED lamps
– Once brought in focus, images remains clear through out whole zoom range
– New side-mounted zoom controls Working distance: 108mm (without auxiliary lens)
– Interpupillary Distance Adjustment : 55mm – 75mm.
– Binocular Tube : Inclined 450 degree.
– Diapter adjustment: +/- 5 Diapers
– Binocular Body: can be rotated a full 360 degree
– Brightness-adjustable with separate dimmer controls
– High Resolution with Great Flatness and Contrast.
– Head: 45 degree inclined binocular.
– Crystal clear original true colour images.
– Metal track stand finished with stain resistant enamel.

Optional Accessories

Optional Auxiliary Objective Lens 0.5x

Standard LED Ring Light with Dimmer 64 LEDs 6/8cm

Microscope Eyepiece 20x
