OptoMag 23SF

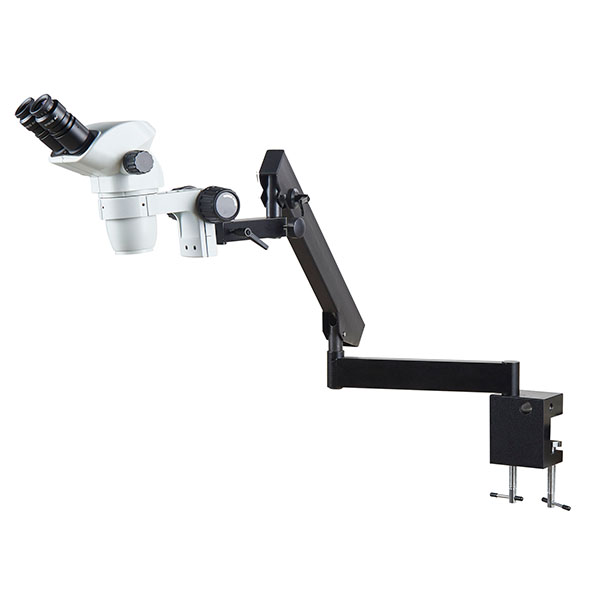

OptoMag 23SF –  Stereo Zoom Microscope

OptoMag 23SF- Stereo Zoom Microscope
(With Flexible Arm Stand – Without Light Source)

The OptoMag 23SF Stereo Zoom Microscope has a side-mount zoom control system, is easy to operate, and is perfect for use with bonders and probe arms. Once brought into focus, images remain clear throughout the whole zoom range, and it provides excellent 3D images with high resolution. It has a large field of view, a long working distance and a large depth of field. The sturdy double-arm flexible stand offers solid support with excellent flexibility. It is an ideal instrument for research labs, gemmologists, collectors, engravers, and anyone in the semiconductor and electronics industries.

SKU:KOM23SF

Product Description

Product : OptoMag 23SF – Stereo Zoom Microscope
Product Code : KOM23SF

  • The OptoMag 23SF Stereo Zoom Microscope has a side-mount zoom control system, is easy to operate, and is perfect for use with bonders and probe arms. It provides excellent 3D images with high resolution.
  • Once brought into focus, images remain clear throughout the whole zoom range. It has a large field of view, a long working distance, and a large depth of field. A wide variety of optical lenses and stands are available.
  • The sturdy double-arm flexible stand offers solid support with excellent flexibility.
  • It is an ideal instrument for research labs, gemmologists, collectors, engravers, and anyone in the semiconductor and electronics industries.
  • Designed as a modular system with all metal construction.
  • The microscope comes with the standard super-wide field, high eye point WF10X eyepiece, enabling observation over a wide area and being convenient for operators who wear eyeglasses.
  • The optics of this SM series microscope feature a large zoom magnification range, which produces sharp, crystal-clear stereo images while providing a generous working distance.

Product Specification

– Excellent 3D images with high resolution.
– Zoom Range: 0.7x – 4.5x, Zoom ratio 1: 6.5
– Magnification – 7x to 45x
– Field of View : 33mm to 51mm
– Once brought in focus, images remains clear through out whole zoom range
– New side-mounted zoom controls Working distance: 108mm (without auxiliary lens)
– Interpupillary Distance Adjustment : 55mm – 75mm.
– Binocular Tube : Inclined 450 degree.
– Diapter adjustment: +/- 5 Diapers
– Binocular Body: can be rotated a full 360 degree
– Extremely sharp and clear images
– Eyepieces come with adjustable diopters
– Crystal clear original true color microscope images
– Full optical glass elements
– Precise ground glass lenses
– Full metal chrome-plated mechanical components
– Adjustable interpupillary distance and flexible Arm Stand.

Technical Specification:

  • Space: Clamp Flexible Arm
  • The clamp’s maximum opening size is up to 57mm.
  • A lock ring on a vertical post for stopping.
  • Flexible Arm: Up to down of the working vertical travel distance of 265mm can be moved 745mm of range in any position from the 5/8 inch fitting to mount centerline.

Other Accessories

Product Features

ResolutionExcellent 3D images with high resolution
Zoom Range0.7x -4.5x
Zoom Ratio1:6.5
Magnification7x - 45x
StandFlexible- Arm stand
Field of View33mm - 5.1mm
Diopter Adjustment+/-5 Dioptre
Working Distance105mm
Interpupillary Distance55mm -75mm
