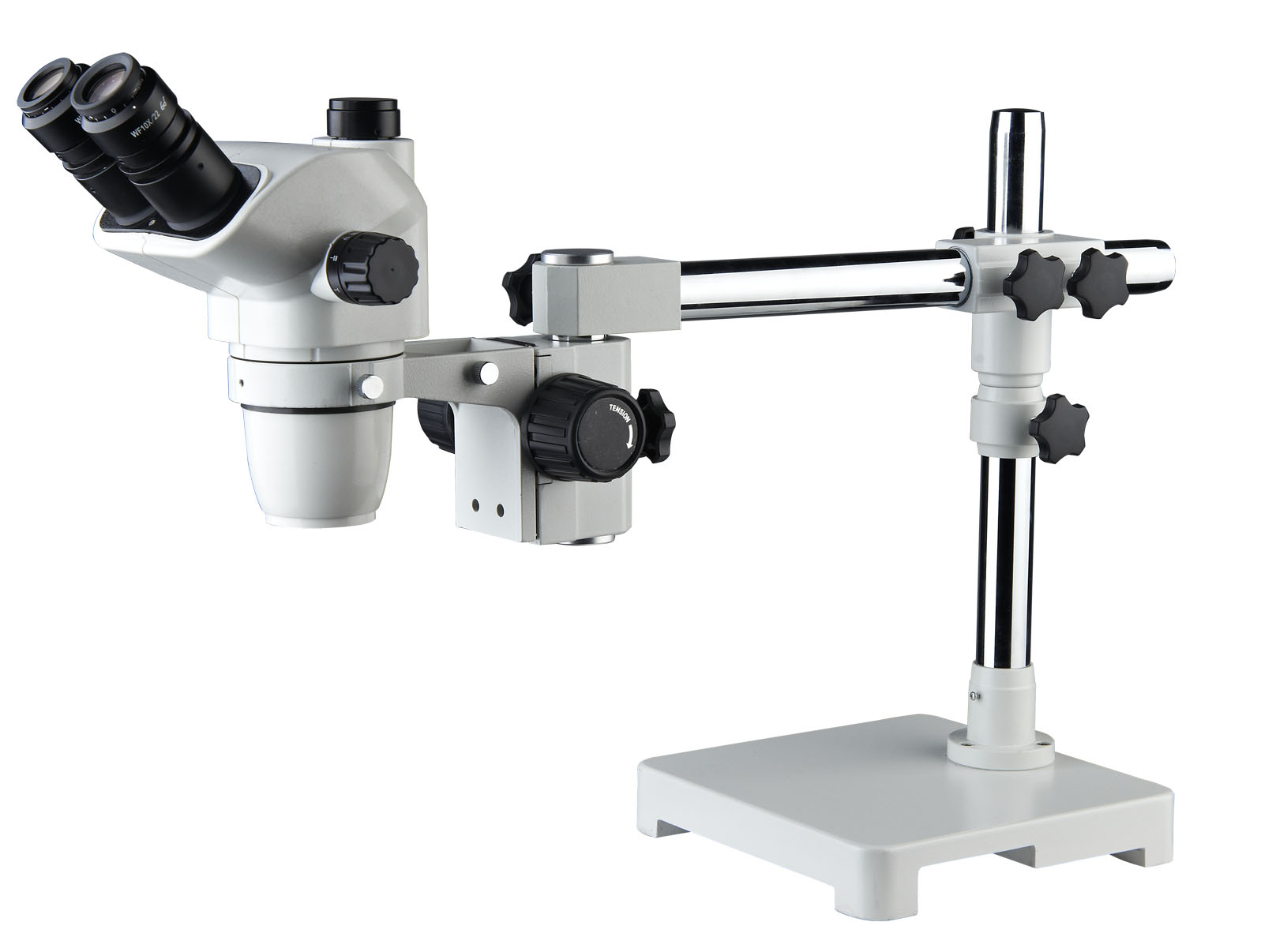

OptoMag 23TB-Trinocular Zoom Microscope
OptoMag 23TB-Trinocular Zoom Microscope
(With Boom Stand – Without Light Source)
Video Connectivity Upgradeable.
The OptoMag 23TB Trinocular Zoom Microscope has a side-mount zoom control system, is easy to operate, and is perfect for use with bonders and probe arms. Once brought into focus, images remain clear throughout the whole zoom range, and the port enables it to add photographic or video capability. It provides excellent 3D images with high resolution. It has a large field of view, a long working distance, and a large depth of field. The sturdy single-arm boom stand offers solid support with excellent flexibility. This system is a perfect microscopy unit for industrial and/or biological laboratory applications. It is an ideal instrument for researchers, gemmologists, manufacturing engineers, and anyone in the semiconductor and electronics industries.
| SKU: | KOM23TB |
Product Description
Product : OptoMag 23TB- Trinocular Zoom Microscope
Product Code : KOM23TB
- The OptoMag23SB Stereo Zoom Microscope has a side-mount zoom control system that is easy to operate and perfect for use with bonders and probe arms.
- Once brought into focus, images remain clear throughout the whole zoom range, and the port enables it to add photographic or video capability.
- It provides excellent 3D images with high resolution.
- The sturdy single-arm boom stand offers solid support with excellent flexibility.
- Designed as a modular system, with metal construction.
- This system is a perfect microscopy unit for industrial and/or biological laboratory applications. It is an ideal instrument for researchers, gemmologists, manufacturing engineers, and anyone in semiconductor and electronics industries.
- The microscope come with standard supper wide field, high eye point WF10X Eyepiece, enabling observation over a wide area and is convenient for operators who wear eye glasses.
- The optics of this SM series microscope feature a large zoom magnification range, which produces sharp, crystal-clear stereo images while providing a generous working distance.
Product Specification
– Excellent 3D images with high resolution.
– Zoom Range: 0.7x – 4.5x, Zoom ratio 1: 6.5
– Magnification – 7x to 45x
– Field of View : 33mm to 5.1mm
– Once brought in focus, images remains clear through out whole zoom range
– New side-mounted zoom controls Working distance: 105mm (without auxiliary lens)
– Interpupillary Distance Adjustment : 55mm – 75mm.
– Trinocular Tube : Inclined 450 degree.
– Dioptre adjustment: +/- 5 Dioptre
– Trinocular Body: can be rotated a full 360 degree
– Extremely sharp and clear images
– Eyepieces come with adjustable diopters
– Crystal clear original true color microscope images
– Full optical glass elements
– Precise ground glass lenses
– Adjustable interpupillary distance and adjustable Boom stand.
Optional Accessories
Product Features
| Resolution | Excellent 3D images with high resolution |
| Zoom Range | 0.7x -4.5x |
| Zoom Ratio | 1:6.5 |
| Magnification | 7x - 45x |
| Stand | Flexible- Boom stand |
| Field of View | 33mm - 5.1mm |
| Diopter Adjustment | +/-5 Dioptre |
| Working Distance | 105mm |
| Interpupillary Distance | 55mm -75mm |
| Head Type | Trinocular |
