Product Description

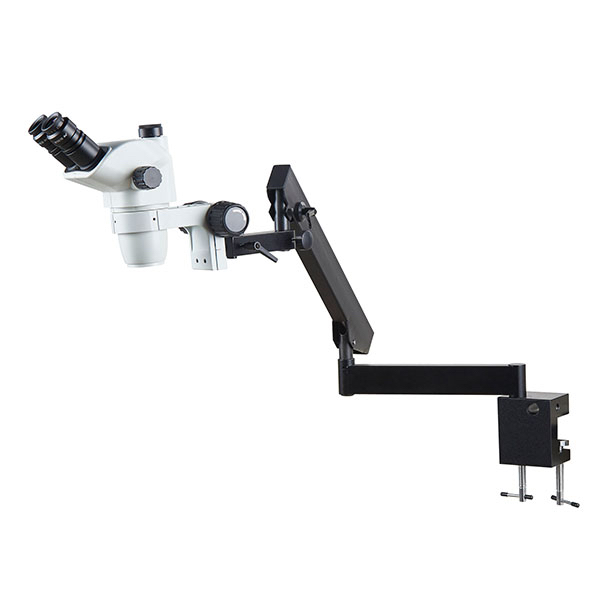

Product : OptoMag 23SF – Trinocular Zoom Microscope
Product Code : KOM23SF

• The OptoMag 23S Trinocular Stereo Zoom Microscope has a side-mount zoom control system, is easy to operate, includes phototubes and is perfect for use with bonders and probe arms. It provides excellent 3D images with high resolution.
• Once brought into focus, images remain clear throughout the whole zoom range. It has a large field of view, a long working distance, and a large depth of field. A wide variety of optical lenses and stands are available.
• The sturdy double-arm flexible stand offers solid support with excellent flexibility.
• It is an ideal instrument for research labs, gemmologists, collectors, engravers, and anyone in the semiconductor and electronics industries.
• Designed as a modular system with all metal construction.
• The microscope comes with the standard super-wide field, high eye point WF10X eyepiece, enabling observation over a wide area and being convenient for operators who wear eyeglasses.
• The optics of this SM series microscope feature a large zoom magnification range, which produces sharp, crystal-clear stereo images while providing a generous working distance.

Product Specification

– Excellent 3D images with high resolution.
– Zoom Range: 0.7x – 4.5x, Zoom ratio 1: 6.5
– Magnification – 7x to 45x
– Flexible Stand – Without Light Source
– Field of View : 33mm to 51mm
– Once brought in focus, images remains clear through out whole zoom range
– New side-mounted zoom controls Working distance: 108mm (without auxiliary lens)
– Interpupillary Distance Adjustment : 55mm – 75mm.
– Trinocular Tube : Inclined 450 degree.
– Diapter adjustment: +/- 5 Diapers
– Trinocular Body: can be rotated a full 360 degree
– Eyepieces come with adjustable diopters
– Crystal clear original true color microscope images
– Full optical glass elements
– Precise ground glass lenses
– Full metal chrome-plated mechanical components

Technical Specification:

• Space: Clamp Flexible Arm
• The clamp’s maximum opening size is up to 57mm.
• A lock ring on a vertical post for stopping.
• Flexible Arm: Up to down of the working vertical travel distance of 265mm can be moved 745mm of range in any position from the 5/8 inch fitting to mount centerline
