OptoMag Stereo Zoom Microscope

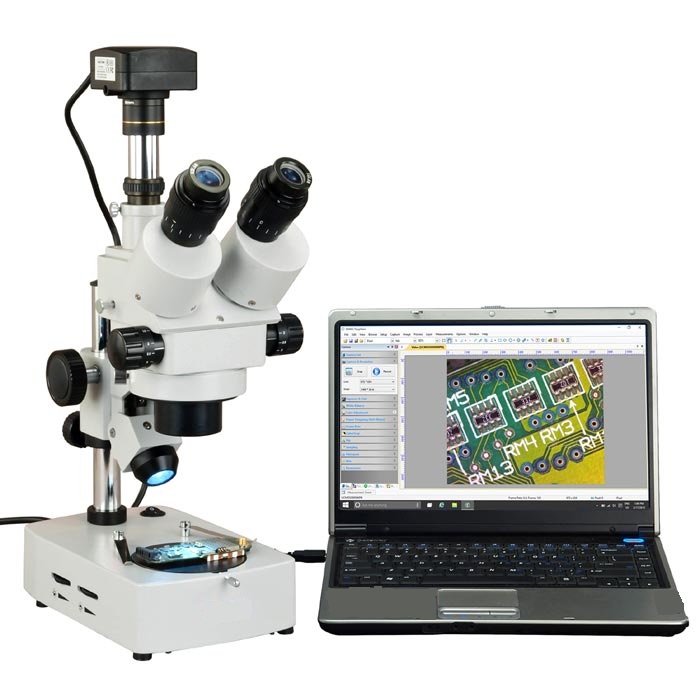

OptoMag 23V- Trinocular Zoom & Video Microscope
( With Light Stand & Bottom Florescent Light )
Stereo Zoom Microscope has a side mount zoom control system, it is easy to operate, perfect for use with bonders and prober arms.It provides excellent 3D images with high resolution. Once brought in focus, images remains clear throughout whole zoom range, it has large field of view, long working distance, and big depth of field, a wide variety of optical lenses and stands are available.
SKU: | KOM23V |
Product Description
Product:OptoMag 23V- Trinocular Zoom & Video Microscope
Product Code:KOM23V
- OptoMag23V Stereo Zoom Microscope has a side mount zoom control system, it is easy to operate, perfect for use with bonders and prober arms.
- It provides excellent 3D images with high resolution.
- Once brought in focus, images remains clear throughout whole zoom range.
- It has large field of view, long working distance, and big depth of field, a wide variety of optical lenses and stands are available.
- Designed as a modular system, with all metal construction.
- It widely used in the various applications, such as assembly and inspection industries, educational clinical and research purposes.
- The microscope come with standard supper wide field, high eye point WF10X Eyepiece, enabling observation over a wide area and is convenient for operators who wear eye glasses.
Product Specification
– Excellent 3D images with high resolution.
– Zoom Range: 0.7x – 4.5x, Zoom ratio 1: 6.5
– Magnification – 7x to 45x
– Light Stand with built-in illumination
– Field of View : 33mm to 5.1mm
– Once brought in focus, images remains clear through out whole zoom range
– New side-mounted zoom controls Working distance: 108mm (without auxiliary lens)
– Interpupillary Distance Adjustment : 55mm – 75mm.
– Binocular Tube : Inclined 450 degree.
– Dioptre adjustment: +/- 5 Dioptre
– Binocular Body: can be rotated a full 360 degree
Optional Accessories
Product Features
Resolution | Excellent 3D images with high resolution. |
Zoom Range | 0.7x – 4.5x, Zoom ratio 1: 6.5 |
Magnification | 7x to 45x |
Stand | Light Stand with built-in illumination |
Field of View | 3.3mm to 5.1mm |
Dioptre adjustment | +/- 5 Dioptre |
Body | Binocular Body can be rotated a full 360 degree |
