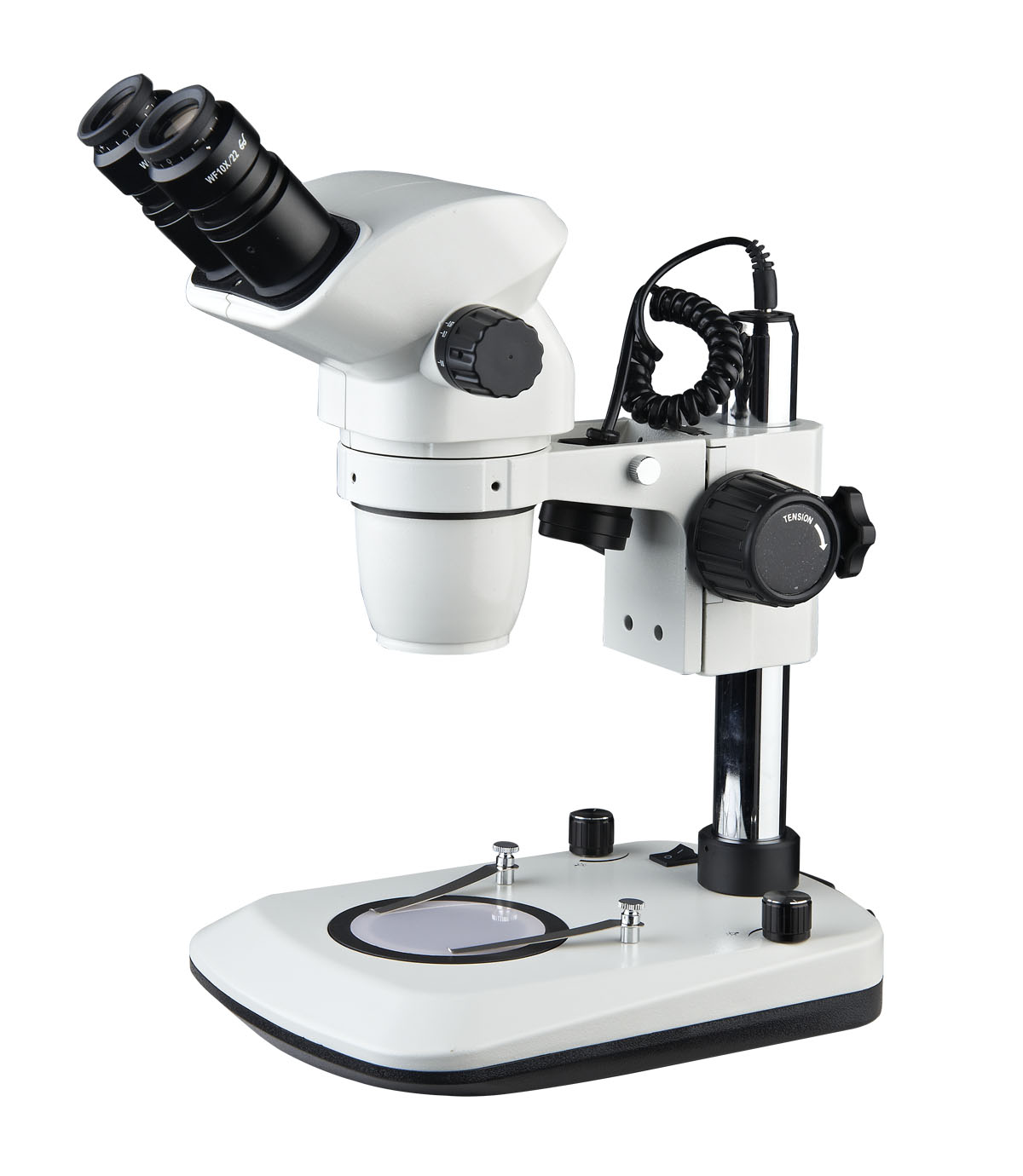

OptoMag23SP-Stereo Zoom Microscope 7X – 45X
OptoMag 23SP – Stereo Zoom Microscope
( With Top LED Light & Bottom LED Light )
The Optomag 23SP Stereo Zoom Microscope is a fully coated optical system with super-high resolution. It offers excellent 3D images with high resolution. Once brought into focus, the image remains clear and sharp throughout the whole zoom range. It has a large field of view, a long working distance, and a large depth of field. A wide variety of optical lenses and stands are available. It’s widely used in Electronic industry, Education demonstration and agriculture research for micro object observation.
| SKU: | KOM23SP |
Product Description
Product : OptoMag 23SP Stereo Zoom Microscope
Product Code: KOM23SP
- The OptoMag23SP Stereo Zoom Microscope has a side-mount zoom control system, is easy to operate, and is perfect for use with bonders and probe arms.
- This high-quality 7X–45X binocular stereo zoom microscope comes with super-wide field optics and a pole stand with dual LED illuminators.
- The optics of this Stereo Microscope series microscope feature a large zoom magnification range, which produces sharp, crystal-clear stereo images while providing a generous working distance.
- It provides excellent 3D images with high resolution.
- Once brought into focus, images remain clear throughout the whole zoom range.
- It has a large field of view, a long working distance, and a large depth of field. A wide variety of optical lenses and stands are available.
- Designed as a modular system with all metal construction.
- It is widely used in various applications, such as the assembly and inspection industries, Education demonstration, clinical, and and agriculture research for micro object observation.
- OptoMag 23SP Stereo Zoom Microscopes come with the standard super-wide field, high eye point WF10X Eyepiece, enabling observation over a wide area and being convenient for operators who wear eyeglasses.
Product Specification
– Excellent 3D images with high resolution.
– Zoom Range: 0.7x – 4.5x, Zoom ratio 1: 6.5
– Magnification – 7x to 45x
– Field of View : 33mm to 5.1mm
– Once brought in focus, images remains clear through out whole zoom range
– New side-mounted zoom controls Working distance: 105mm (without auxiliary lens)
– Interpupillary Distance Adjustment : 55mm – 75mm.
– Binocular Tube : Inclined 450 degree.
– Diapter adjustment: +/- 5 Diapers
– Binocular Body: can be rotated a full 360 degree
– Brightness-adjustable with separate dimmer controls
– The top LED light is integrated and the bottom florescent light is integrated.
– High resolution with great flatness and contrast.
– Crystal clear original true colour images.
– Metal track stand finished with stain resistant enamel.
Optional Accessories
Product Features
| Resolution | Excellent 3D images with high resolution |
| Zoom Range | 0.7x -4.5x |
| Zoom Ratio | 1:6.5 |
| Stand | Pole stand |
| Field of View | 33mm - 5.1mm |
| Diopter Adjustment | +/- 5 Diopter |
| Working Distance | 105mm |
| LED | Top LED Light and Bottom LED Light |
| Interpupillary Distance | 55mm -75mm |
