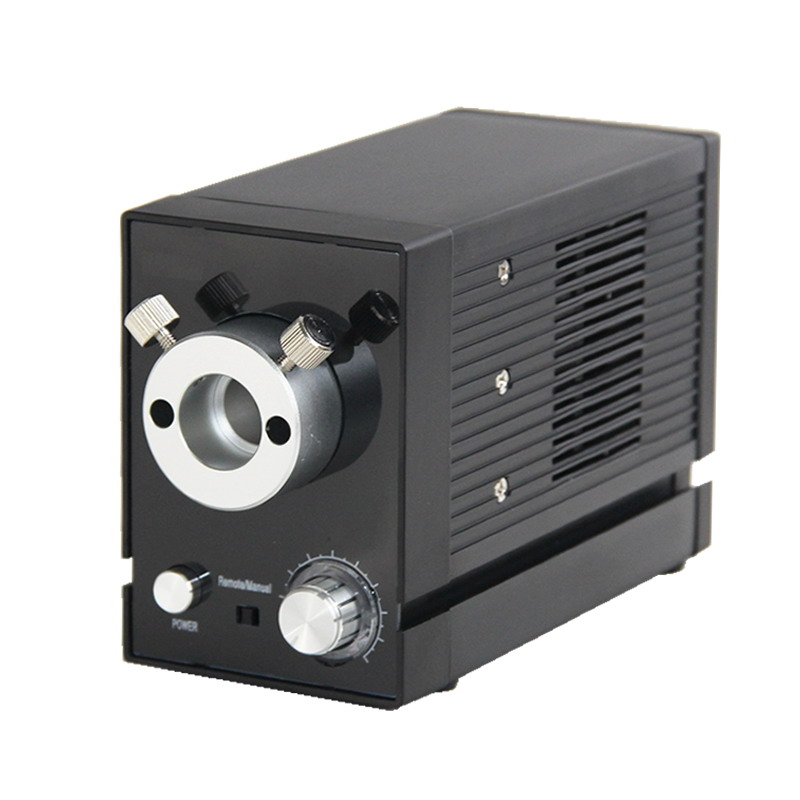

TT LED High Intensity Light Source for FO Interface – 150k Lx with Fan
The LED Fiber Optic Illuminators are economical, energy efficient, white light sources. Their flexible but simple operation methods and compact size allow for easy integration into any existing spectroscopy setup, especially fiber coupled applications.
SKU: | KMA219 |
Product Description
Light Source for FO: TT LED High-Intensity Ensure that the daytime illumination is cool, even, and powerful. Its extended life and high power output are achieved by utilizing an all-around heat sink, high-brightness LEDs, and a special condenser mechanism. Solid-state controls allow for complete intensity adjustment, and the light source features an integrated heat filter for cooling and a slot specifically made for color filters. The side groove design and compact look provide easy fixing. A constant current drive, an AC/DC power supply, and a dimming switch.
Features
Specifications
- Power supply – AC 96-240V power adapter, 50/60Hz DC24V 1.5A
- Power consumption – 15W Max.
- Dimming control – Continuous dimming/ 0-5V analog control / PWM 200Hz 5V
- Av. illuminance (lx) – Approx. 143,000lx
- Color tempreture – 5000K-8300K
- Av. LED life – Approx. 30,000 hours
- Cooling system – Body + high speed fan
- Operating condition – 0℃~45℃ / 20%~80% RH
- Net weight – 840g
- Dimensions – 186 x 72 x 104mm
