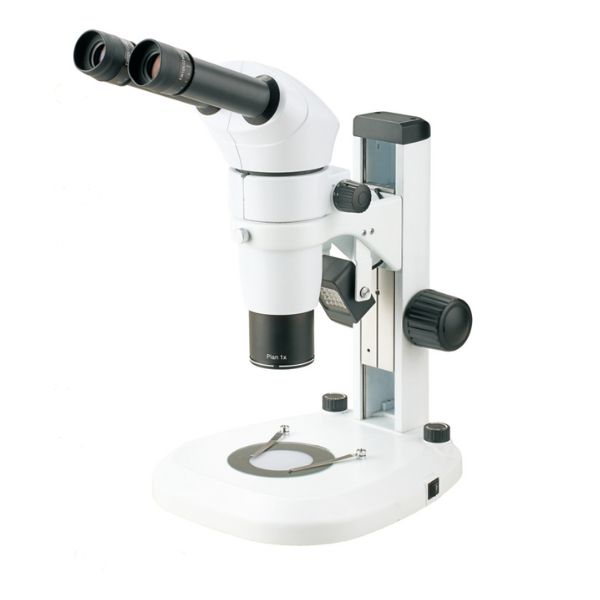

Advanced Stereo Zoom Microscope

We are delighted to present our Optike brand Advanced Stereo Zoom Microscope, ideal for scientific research, biological studies, and medical applications. The microscope features an ergonomic design for comfortable and precise operation, promoting a natural posture. With exceptional optical performance and a variety of accessories to cater to different requirements, the microscope offers a significant 10X zoom ratio, ranging from 0.8X to 8X. This provides a total magnification range from 4X to 320X, depending on the eyepiece and objective combination used. In addition to the standard setup, there is an option for a tilting binocular eyepiece tube for optimal eyepoint observation. The microscope includes an expanded accessory lineup to enhance versatility in various applications, such as epifluorescence attachment, dark field attachment, photography capability, and coaxial coarse/fine focusing unit.

Features

  • Unrivaled optical performance with infinity parallel optical system.
  • Providing even illumination and 6000 hours life expectancy with ultra- thin LED illumination for both incident and transmitted light.
  • With complete accessories, it can be used widely for scientific research, industry, biological and medical field.
  • Infinity Colour Corrected Optics, Trinocular Gemel Viewing Head.
  • Wide Selection of Filters for GFP, DAPI, TRITC, Texas Red, mCherry.
  • Ultrawide 25 FN Eyepeice, High Definition Optical System, 6 Slot Filter
    Cube Rotary Slider, Smooth XY Stage Movement, 4x / 10x / 20x / 40x /
    100x Objectives, Plan Apochromatic,
  • Optional SAPO Objectives, Optional Florite Objectives, OSRAM Arc Lamp with Adjustments
  • Optional DIC Silders & Prisms
Sl NoProduct DescriptionProduct Specifications
1Optical systemParallel optical zoom system
2Viewing HeadBinocular observation head, tilt angle 20°, interpupillary distance 55-75mm
3Eyepiece
  • WF10X/Φ22 (NSZ-800)
  • WF10X/Φ24 (SZ6000)
  • WF15X/Φ16
  • WF20X/Φ12
  • WF30X
4Zoom Objective
  • 0.8X~5X
  • 0.8X~6.4X
  • 0.8X~8X
5Objective
  • 0.3X Achromatic objective – WD: 276mm
  • 0.5X Achromatic Objective – WD: 186mm
  • 1X Plan achromatic objective – WD: 78mm
  • 2X Plan achromatic objective – WD: 32.5mm
  • 0.5X Plan apochromatic objective – WD: 126mm
6Zoom Ratio
  • 1:6
  • 1:8
  • 1:10
7Working Distance78mm
8Focusing Range105mm
9IlluminationTransmission & reflection LED illumination, brightness adjustable
10Optional
  • Coaxial illumination
  • Epi-fluorescent attachment
  • Dark field attachment
  • Simple polarization set
  • Iris diaphragm
  • Beam splitter (one port)
  • Beam splitter (two ports)
  • Photography & video attachment
  • Moveable stage
  • Temperature controlled stage
  • Universal table stand/Table clamp stand
  • Coaxial coarse & fine focusing unit
  • Cold light illumination with dual light guide
  • LCD Attachment

System Diagram
