Manual Research Microscope
The KFMNE910 Upright Research Microscope is an excellent optical performance and comfortable operation experiences are worth believing by the scientific research workers as a scientific research partner. The infinite optical system, which is the mainstream optical system of scientific research microscopes, makes it possible to realize many kinds of observation methods. The perfect Kohler lighting provides a bright and uniform field of view for the microscope. On this basis, Nescopeck continues to optimize the customer product experience with the KFMNE910 in line with ergonomic design so that observation and operation can maintain a comfortable posture.
Easy to Customize
Wide-Field Eyepiece
KFMNE910 uses a large field of view eyepiece with a field of view of 25mm. The field of view is larger, the observation content is more comprehensive, and the sample observation is faster. For samples that require panoramic views, a microscope with a large field of view is a better choice.
Adjustable Control Knobs
The height of the stage control knobs can be adjusted up or down by 18mm to ensure a comfortable hand position and with adjustable tension control.
The Left / Right Hand Position Operate
Customers can choose the position of the fine focusing knob to be right or left according to preferences.
Comfortable to Use and Easy to operate

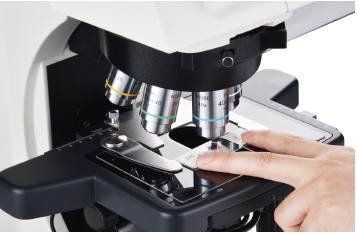

Put Slides by One Hand
It is easy for operators to put slides by one hand due to the convex point place design on clip.

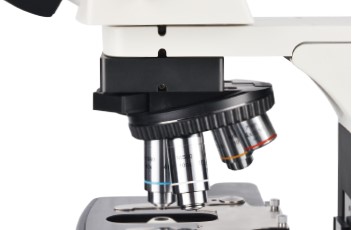

Adapter to Lower Stage Position
To lower the stage by 1 by adding a block up the nosepiece, so that operators can change the slides position easily and comfortably.

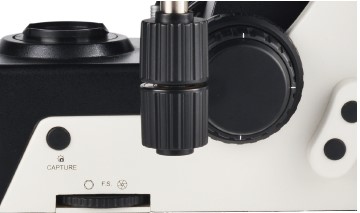

Low-position Control Knobs
Ergonomic design, to give you the maximum degree of comfort.
Multi-Viewing System
The multi-viewing microscope system is widely used in the teaching, experimental training and pathological diagnosis of the university. This accessories can be expanded by 1 -10 people, and the microscopic image can not be distorted and the brightness of the image can not be lost. Cooperate with teaching head and built-in indicator needle to facilitate learning and diagnosis.
Building Block Design
This microscope can achieve a variety of observation methods through modular combination bright field, dark field, phase contrast, fluorescence, polarization, DIC and so on.
KFMNE910 - Dimensions Unit : mm
KFMNE910 - System Diagram
Technical Specifications | ||
| Sl | Model | Optike KFMNE910 |
| 1 | Optical System | Infinite Optical System |
| 2 | Eyepiece | SW10x/25, SW10x/22, EW12.5x/17.5, WF15x/16, WF20x/12 |
| 3 | Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 1µm,Moving Ranges 35mm |
| 4 | Illumination | 12V/100V Halogen Lamp, 3W S-LED Lamp |
| 5 | Viewing Head | Trinocular Viewing Head, Eyepiece/Port: 100/0, 20/80, 0/100 Inclined at 30° , Interpupillary Distance 47-78mm |
| 6 | Nosepiece | SZ21A Sextuple Nosepiece |
| 7 | Stage | PT6A-L/R Stage with Gorilla Glass Insert, PT6B-L/R Stage with Sapphire Glass Insert, Moving distance:78(X)x32(Y)mm, 1mm/grid, precision: 0.1mm, The stage control knobs can be adjusted up or down by 18mm，and with adjustable tension control; The convex spot design on clip is convenient to place slides with one hand. |
| 8 | Condenser | SJ5 Swing-out Condenser, XC8 Turret PH Condenser, DFC Dry Dark-field Condenser, DFC-O Oil Dark-field Condenser. |
| 9 | Optional Observation model | Bright field, Dark field, Phase contrast, Fluorescence, Polarization, DIC |
