Video Borescope
We have variety of Industrial Video Borescope, which have the characteristics of flexible control, convenient portability, and intuitive detection. The whole series of borescope are equipped with ultra-close- focus mega-high-definition cameras and industrial-grade touch LCD screen, which can clearly show details that are difficult for the human eye to see the diameter of the probe is as small as millimeters, and it supports 360 degree full way articulation, allowing it to travel freely the inside of the disassemble equipment, the inner surface of narrow gaps and other special environments, efficiently detect and record various defects such as corrosion, rust spots, cracks, iron filings and foreign objects, and provide reliable basis for later maintenance and repair.

| Display | 5″ HD Large screen |
|---|---|
| Dimension | 350*155*59mm |
| Output | TF card slot, HDMI, Interface, Micro USB,AUX |
| Power | Modular battery, working time, ≥4h |
| IP Grade | -20°C~70°C, Low temperature without preheating(customized-40°C~85°C) |
| Operating Temperature | -20°C~50°C, Low temperature without preheating |
| Storage Temperature | -20°C~60°C |
| Relative Humidity | Max 90%, No condensation |
| Storage Card | TF Card 32GB (other customer) |
| Probe Diameter | 0.95mm-8mm |
|---|---|
| Pixel | ≥1.0MP |
| Length | 1-10m(other customized) |
| Articulation | 360° all way Articulation |
| Max Swing head angle | ≥180° |
| DOF | 3mm-30mm/3mm~70mm/7~150mm/12~200mm/50-infinity |
| FOV | 90°/120°/140°(optional) |
| Viewing angle | Front/side/dual view (Dual screen synchronous display) Front and side switched |
| Illumination | Rear high power LED fiber optical illumination |
| Operating temperature | -20°C~70°C |

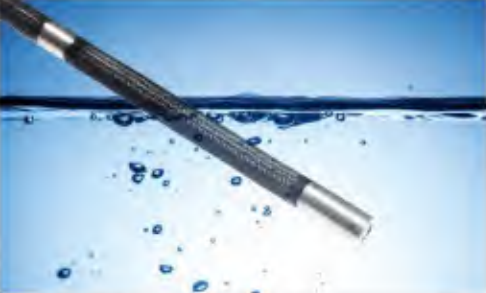

| IP Grade | IP67 |
| Image /video format | Image JPEG,(JPG),Video AVI |
|---|---|
| Image control | Freezing, zooming, photographing, flipping, video playback and analog ruler functions |
| System language | Chinese, English, German, French, Russian, Spanish, Italian, Polish, Japanese, Ukrainian, etc. |
