- Auto Focus Function & Motorized Optical Magnification
- Excellent Image Quality
- Large Field of view
Description
- Our Industrial VIS is designed to work in Shop floor 24 x 7 x 365 without any issues.
- Excellent Price to Performance & Fastest ROI.
- Robust & Reliable Industrial Build Quality.
- Reduced Operator Fatigue & Increased Productivity.
- Reliable Process Control & Better Visibility.
Wide Range of Industrial Applications
This solution is designed for multiple industries. For example, it is suitable for aerospace, horology, and jewelry manufacturing. In addition, it supports precision CNC machined parts for cars, miniature turned components, stamped sheet metal parts, and technical polymer molded components. Furthermore, it can be effectively used for cutting tools and inserts, EMS connectors and hardware, gears and sintered parts, rubber O-rings, hydraulic seals, and more.
Why Choose Optike Inspection Systems?
Therefore, the Optike inspection system is the perfect choice for critical and precision component inspection requirements. Above all, it offers superior image quality, distinctive features, and outstanding cost-effectiveness.
Full HD Resolution & Large FOV
We are excited to introduce our Optike Industrial Full HD Resolution and Large Field of View (FOV) Inspection Systems. In addition, this system offers a wide field of view and delivers high-quality images. Moreover, with up to 22x on-screen magnification and autofocus functionality, it ensures precise and effortless inspections. As a result, users benefit from both convenience and accuracy.
- High Resolution HDMI Industrial Machine Vision Camera.

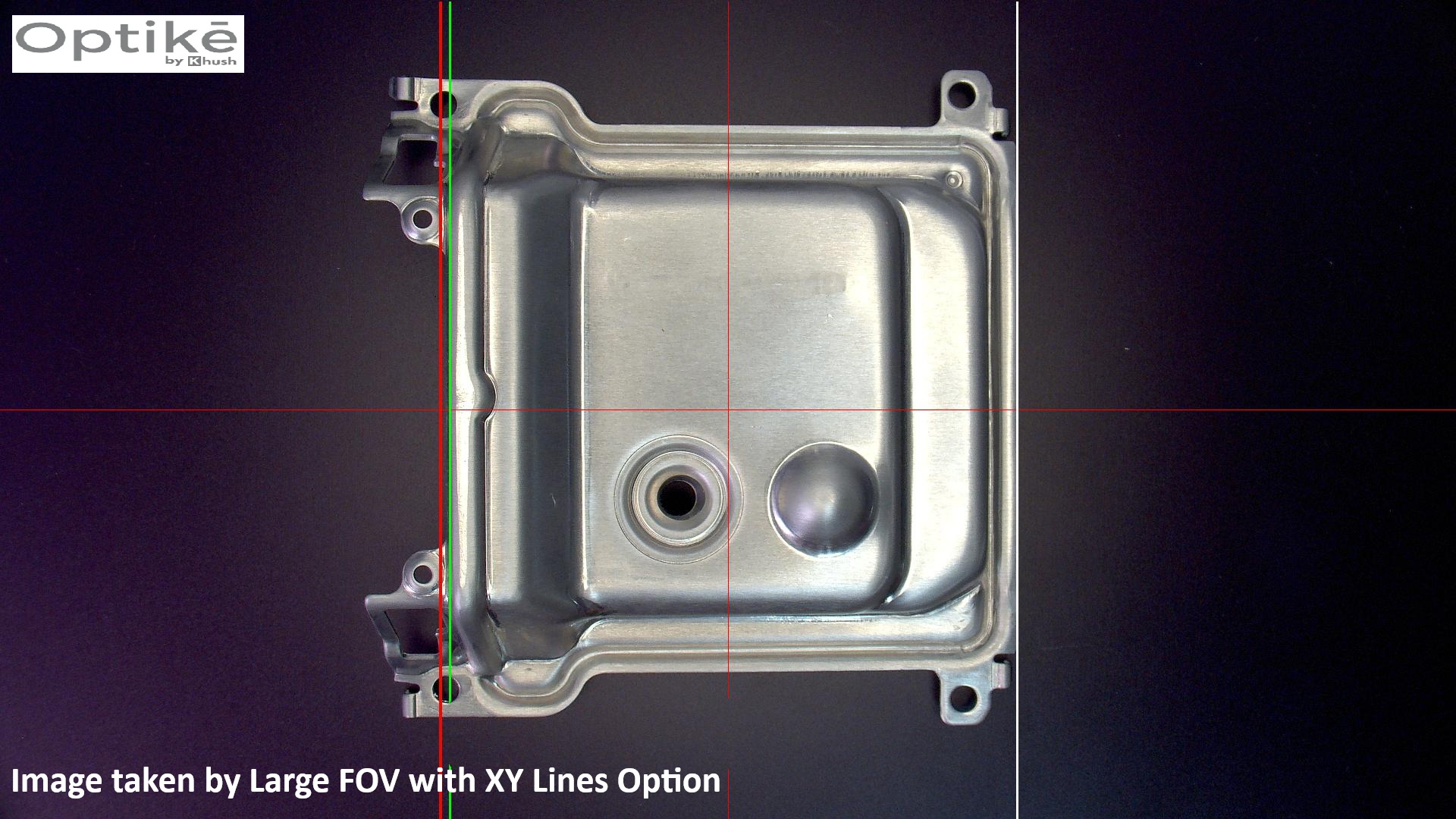

- 1/2” Sony CMOS Sensor 60fps 1920×1080 lines resolution, XY Lines Option.
- USB Photo Capture, Auto White Balance, built in Software Image Enhancement
- Integrated Industrial Imaging Lens with Auto Focus Function & Motorized Optical Magnification.
- Large 200mm ⌀ SMD LED Diffused Ring Light with Dimmer & 3 Step Colour Temp Control Reliable Power Adaptor, Kill Switch, Compatible HDMI Cable & 16 GB Pen Drive.

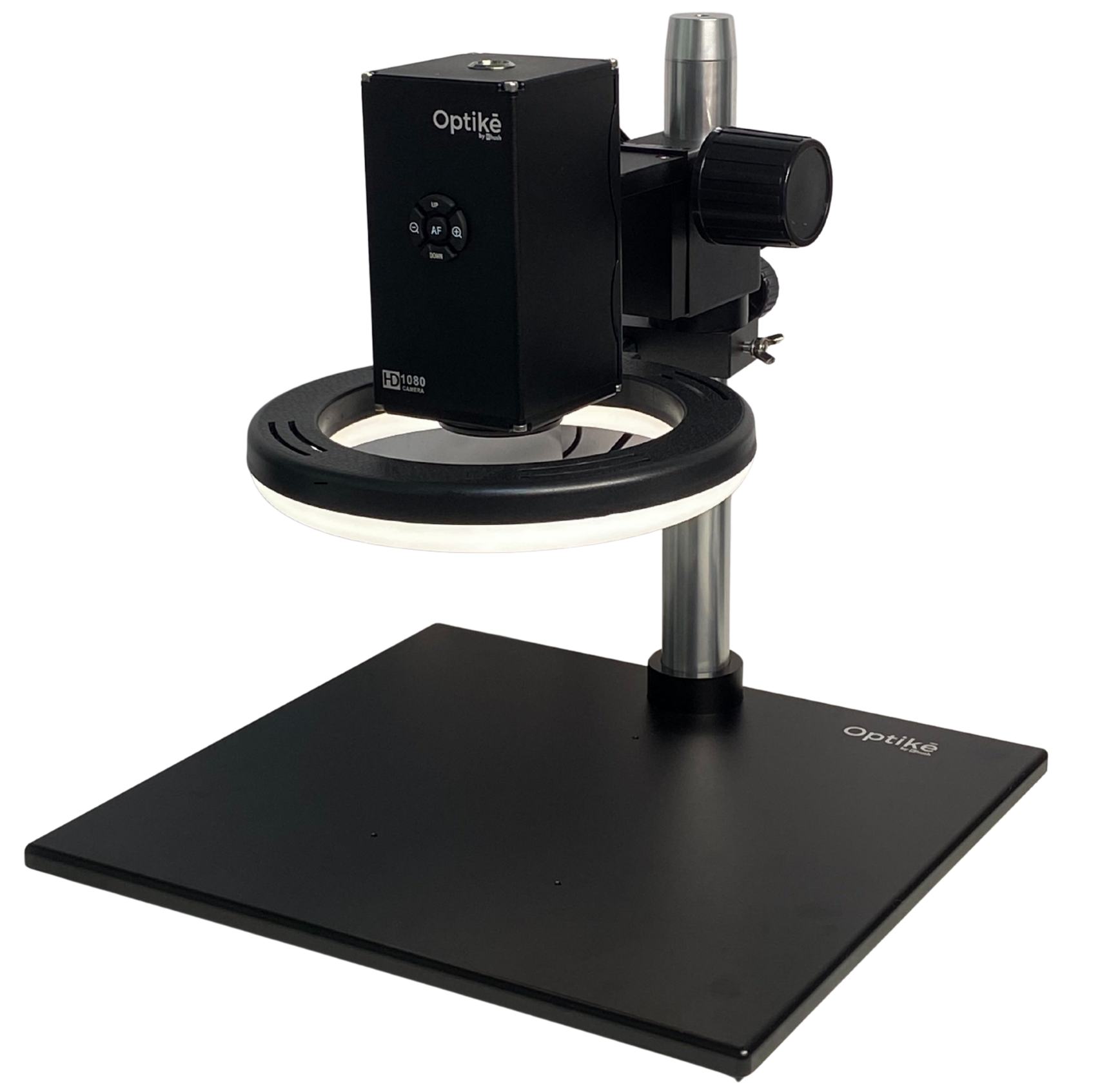

- Heavy Duty Table Top Stand with Profile Light having Focus Adjustment using Lead Screw & WD Adjust with Safety Stopper.

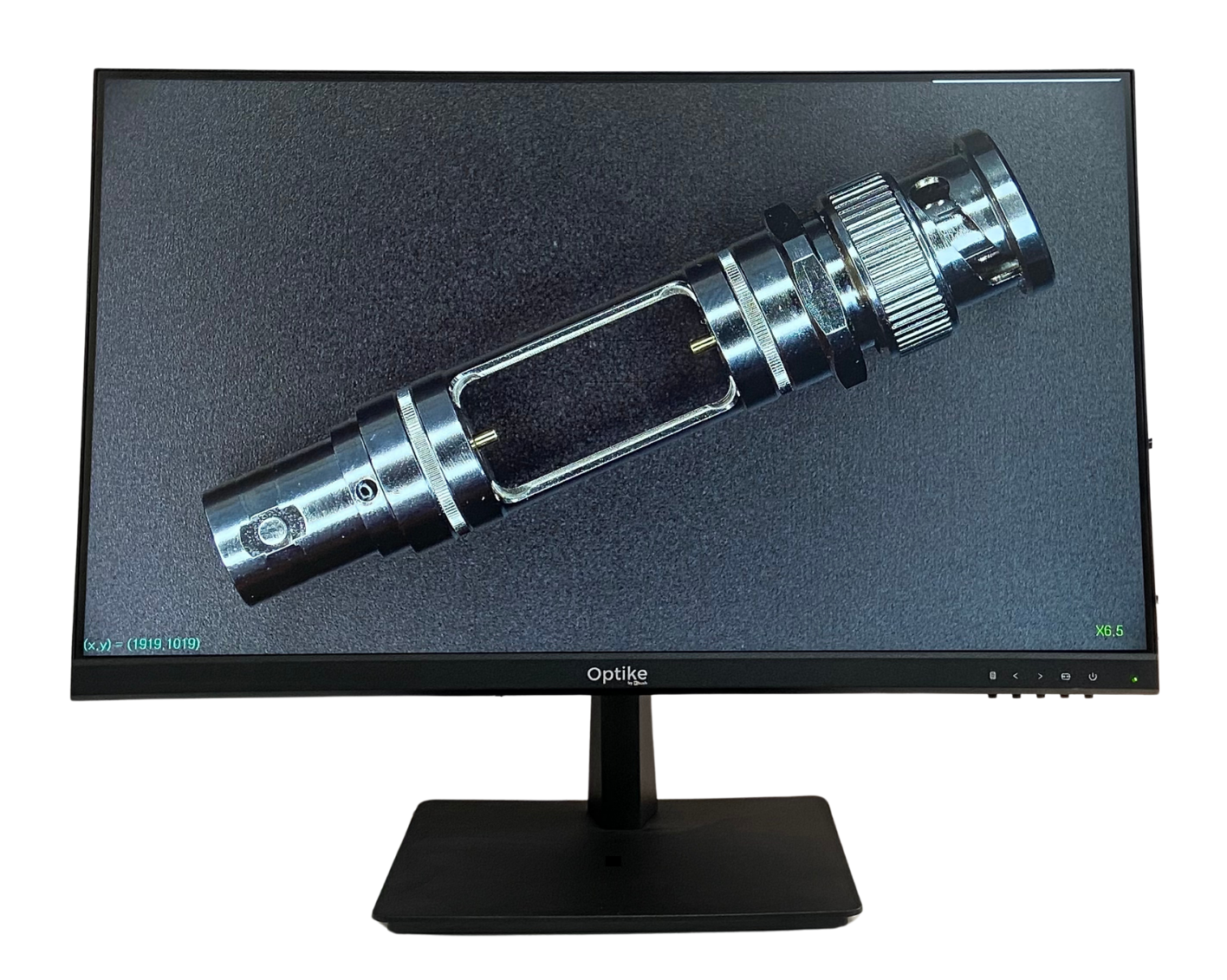

- Native Full HD HDMI Input High Resolution 24″ Display
We welcome you to our office for Live Demo. Contact US
| On-Screen Magnification | FOV – Horizontal | Working Distance |
|---|---|---|
| 3.5x – 22x | 150mm – 27mm | 100mm |
| 2.5x – 16x | 210mm – 33mm | 150mm |
| 2x – 14x | 260mm – 38mm | 200mm |
| Sl No | Product Description | Specification |
|---|---|---|
| 1 | Magnification | Full HD Resolution & Large FOV having High Resolution HDMI Industrial Machin Vision Camera with SecondaryOptical Magnification is 1X – 14X with overall OnScreen Magnification as Below. 1. On-screen magnification -> 3.5x – 19.5x -FOV -H 150mm – 27mm @WD 100m. 2. On-screen magnification -> 2.5x – 16x -FOV – H 210mm -33mm @WD 150mm. 3. On-Screen magnification -> 2x – 14x-FOV – 260mm – 38mm @WD 200mm. 3. On-screen magnification -> 5.7x – 22x – Fov- 91mm- 24mm – @WD 50mm |
| 2 | Resolution | 1920×1080 lines High Resolution HDMI Industrial Machine Vision Camera. |
| 3 | Display | Native Full HD HDMI Input High Resolution 24″ Display |
| 4 | Sensor | The system is integrated with a 1/2” Sony CMOS sensor with 60 fps and 1920×1080 lines resolution (HDMI 1080P), delivering high-resolution images. It automatically focuses and produces exceptional image quality. The camera has a Button Control for adjusting Auto Focus, Zoom In/Out, and Manual Focus. |
| 5 | Video frame rate | A 1/2” Sony CMOS Sensor, 60fps, and 1920×1080 lines resolution (HDMI 1080P), the system provides high-resolution image output at 1080p with real-time software image processing up to 60 frames per second. |
| 6 | Stand Type | Heavy Duty Table Top Stand with Profile Light having Focus Adjustment using Lead Screw & WD Adjust with Safety Stopper. |
| 7 | Focus | An Auto Focus Function that can be used at a variable working distance ranging from 30mm to 240mm. For extended working distance, an optional 200mm extension pole can be used. |
| 8 | Interface | HDMI cable |
| 9 | Illumination | A large 200mm diameter SMD LED Diffused Ring Light is equipped with a dimmer and 3-step color temperature control. This light covers a wide area and provides excellent brightness for uniform illumination. |
| 10 | Accessories | USB Photo Capture, Auto White Balance, built in Software Image Enhancement, Reliable Power Adaptor, Kill Switch, Compatible HDMI Cable, 16 GB Pen Drive & Wireless mouse. |
| 11 | Voltage | 110V-240V |

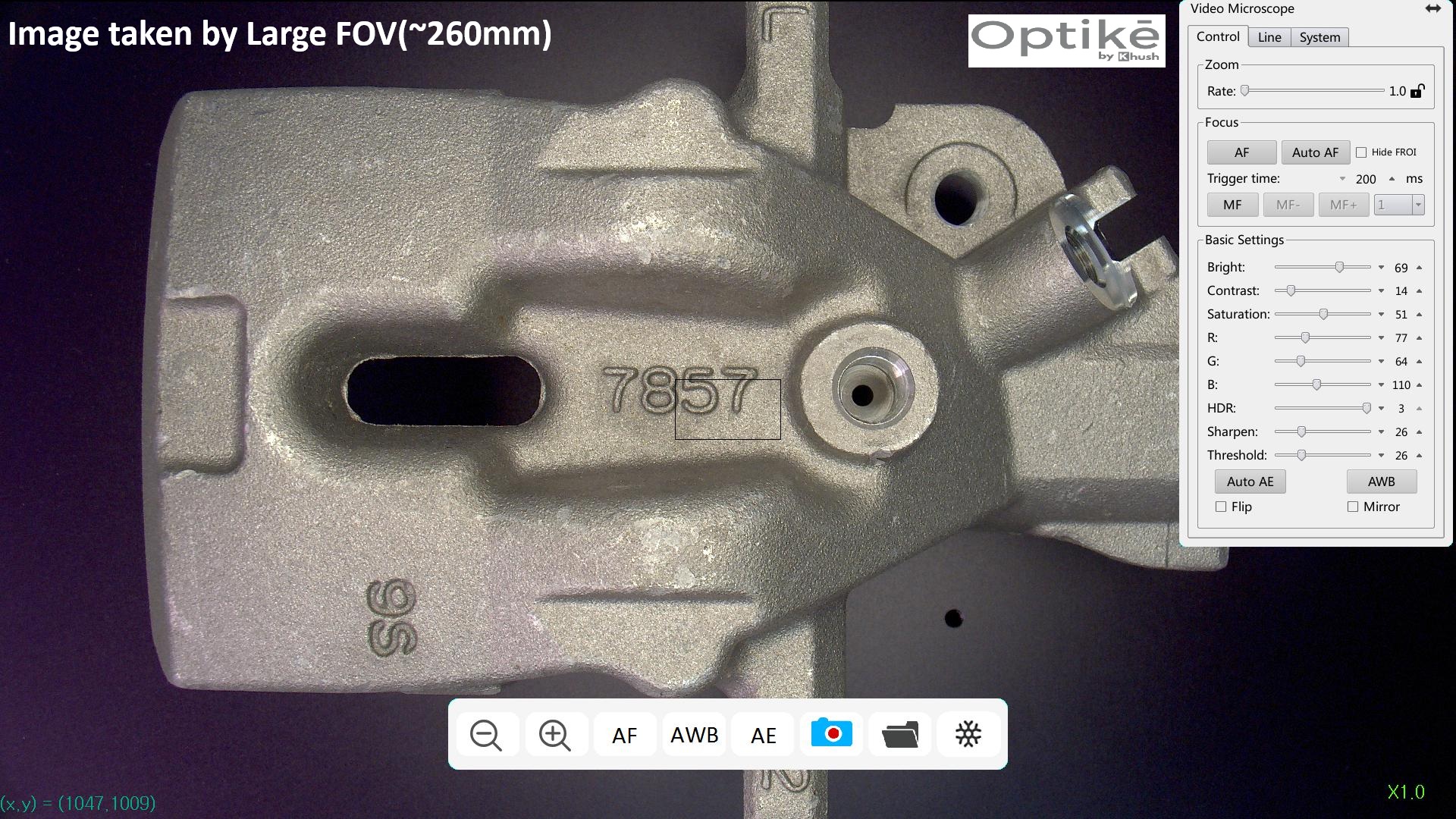

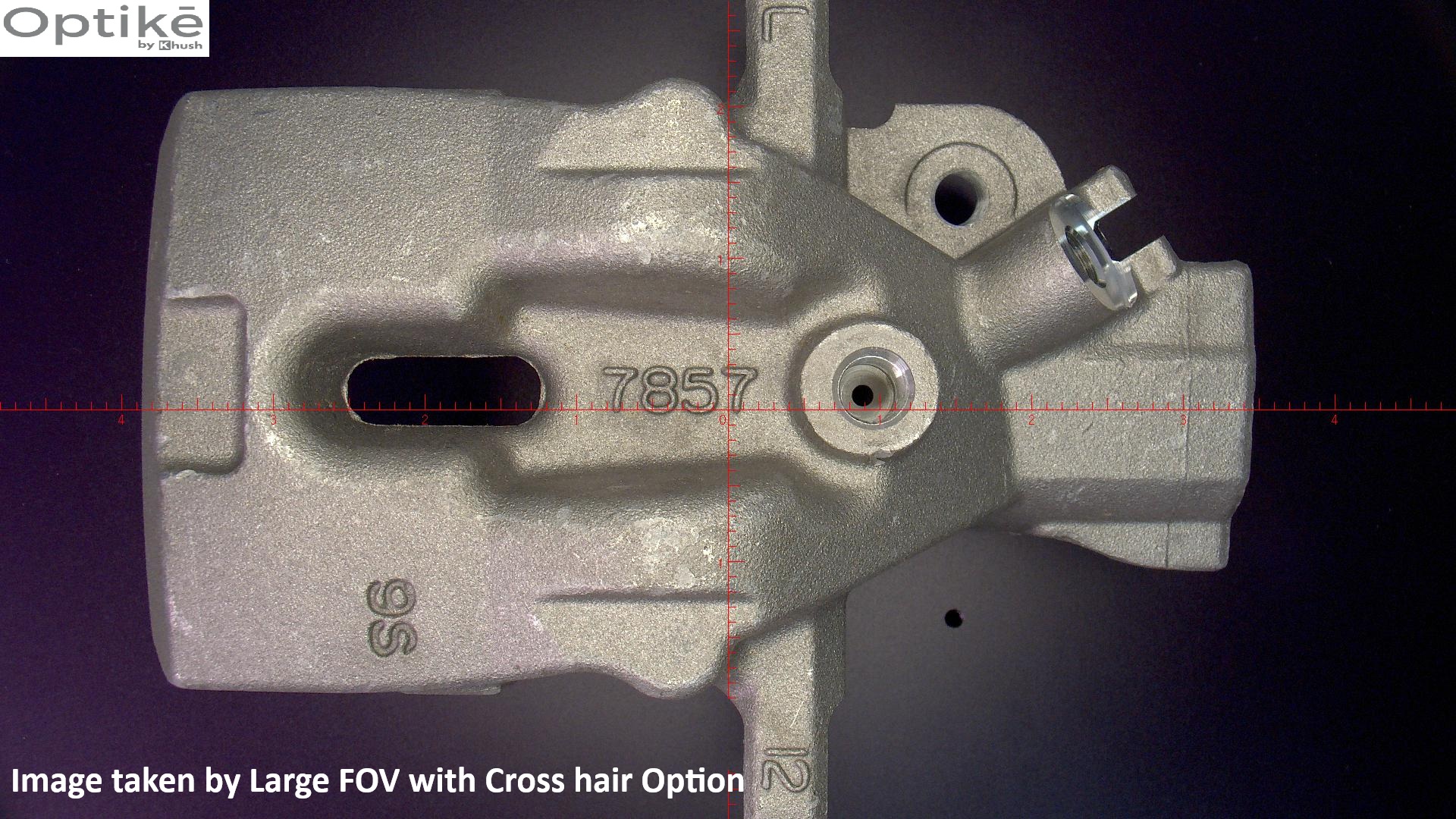

Few Examples of Parts / Components :
Overview & Key Advantages
Our Industrial VIS is designed to operate 24×7×365 in shop-floor environments without any issues. Additionally, it offers an excellent price-to-performance ratio, ensuring the fastest return on investment. Because of its robust and reliable industrial build quality, operators experience reduced fatigue and increased productivity. Furthermore, it improves process control and visibility, which makes it ideal for demanding inspection tasks.
Full HD Resolution & Large FOV Features
We are excited to introduce our Optike Industrial Full HD Resolution and Large Field of View (FOV) Inspection Systems. In addition to offering a wide FOV, the system delivers high-quality images with up to 22× on-screen magnification and autofocus functionality. As a result, users benefit from both convenience and accuracy.
Real-World Use & Examples
We already have 1000+ satisfied users to date. Below are some example use-cases showing how the Optike Industrial VIS performs on various types of components and parts.
Contact & Demo
We welcome you to our office for a live demo. If you want hands-on experience, contact us and we’ll arrange it for you. Also, you can download our Optike Large FOV catalogue for full details and comparisons.
