Gem Microscope
The Jewellery or Gem Stone Inspection Microscope is specially designed for fully meet the Visual
Inspection needs of Diamonds, Crystals & Precious or Semi Precious Gem Stones. Gem Microscope has Bright Field Transmit, Reflect, Polarizing & Dark Field Illumination for Observation.
| SKU: | KOGM |
Product Description

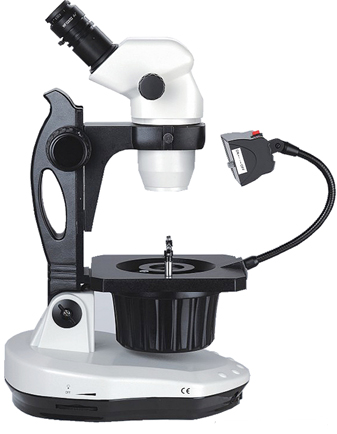

Gem Microscope
This high quality microscope is designed for professional jewelers and gemologists.
It includes a 7X-45X super wide field zoom stereo microscope head, 3D jewelry/gem clamp (tweezers), rotatable round stage with dark-field iris condenser and professional Gem Microscope stand.
• 22mm Large Dia High Point Eyepieces
• 6.7x to 45x Zoomable Magnification
• Specially Designed Microscope Stand with rotatable base & incline adjustments.
• Upper Illumination using 1W High Power LED & Transmit Illumination using 30W Halogen Lamp.
• Specially coated Optical System for clear & sharp images.
• 360° rotatable head with 45° inclined Stereo Eyepieces with Diopter Power Adjustment.
• Inter pupillary adjustment range from 54 to 75mm.
• Standard working distance – 100mm
• Includes wire clamp for bigger stones & flat clamp for smaller stones.
• Auxiliary Objective Lens 2x to increase magnification to 90x @ 26mm WD.
• High resolution sharp images with both bright and dark field illumination
Industrial Microscopes
Product Features
| Microscope Type | Stereo |
| Application | Gemology/Jewelry |
| Magnification Power | 7X-45X |
| Head Type | Trinocular |
| Objective Power | 0.7-4.5X |
| Eyepiece Power | 10X |
| Light Type | Halogen, Fluorescent |
| Color | White & Black |
