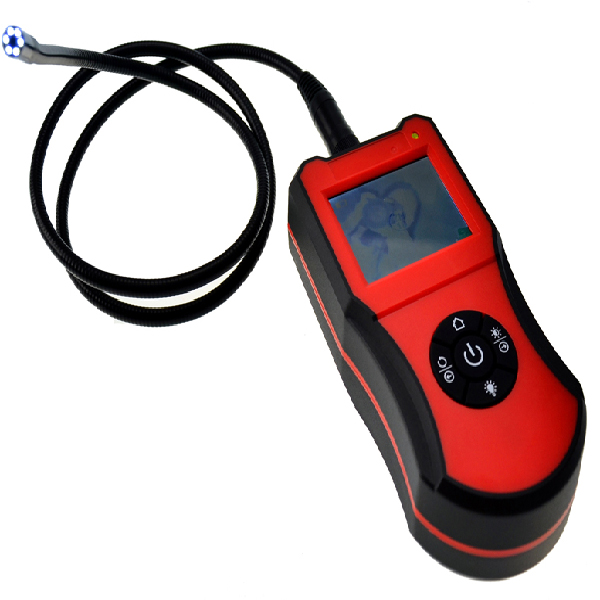

Handheld Borescope
This Borescope Camera has a 2.7inch high definition monitor and 1m cable/tube with 5.5mm camera. Compact design to be easily held in hand. Do real-time non-destructive inspection. Has soft yet rigid tube with LED lamp that can be bend into the places to be inspected, and with the assistance of LED lamp can help see in dark places. This borescope is ideal for applications such as inspecting dimly-lit places like Car engines, Pipelines, Sewers, or chimneys, it can also be used to inspect the gap of industrial buildings.
Product Description
Handheld Borescope
This Borescope Camera has a 2.7inch high definition monitor and 1m cable/tube with 5.5mm camera. Compact design to be easily held in hand. Do real-time non-destructive inspection. Has soft yet rigid tube with LED lamp that can be bend into the places to be inspected, and with the assistance of LED lamp can help see in dark places. This borescope is ideal for applications such as inspecting dimly-lit places like Car engines, Pipelines, Sewers, or chimneys, it can also be used to inspect the gap of industrial buildings.
Features:
- Portable size that easily holds in hands, with FREE Carry Pouch and belt clip
- Image Rotation on screen
- Adjustable camera head’s 6 LED brightness, LCD screen brightness, and screen color
- 2.7 inch LCD Screen displays image clearly
- Can switch between a flexible or a semi-rigid tube for ease of usage
- Sealed and waterproof design (for tube/cable) for various working conditions
- Easily bendable camera to see dark and tight places with minimum difficulty
- with CE FCC ROHS Certifications standards
Specifications:
- Camera Tube
- Image Sensor: VGA CMOS Sensor
- Effective Pixel: 720×480
- Focus Distance: 30-80mm
- View Angle: 60°
- Tube Lenght: 960mm
- LED: 6 LED lights
- Probe Diameter: Φ5.5mm
- Main Unit
- Screen: 2.7inch HD monitor
- Resolution: 960 x 240
- Working Current: < or =500mA
- Power: 4 x AA battery
Other Industrial Products
Product Features
Image Sensor | CMOS Sensor |
Effective Pixels | 720x480 |
Focus distance | 30mm - 80mm |
View angle | 60 degrees |
Tube Length | 960 mm |
LED | 6X0603 LED , 6X0402 LED |
Screen | 960 x 280 2.7 inch screen |
Battery | 4x AA |
