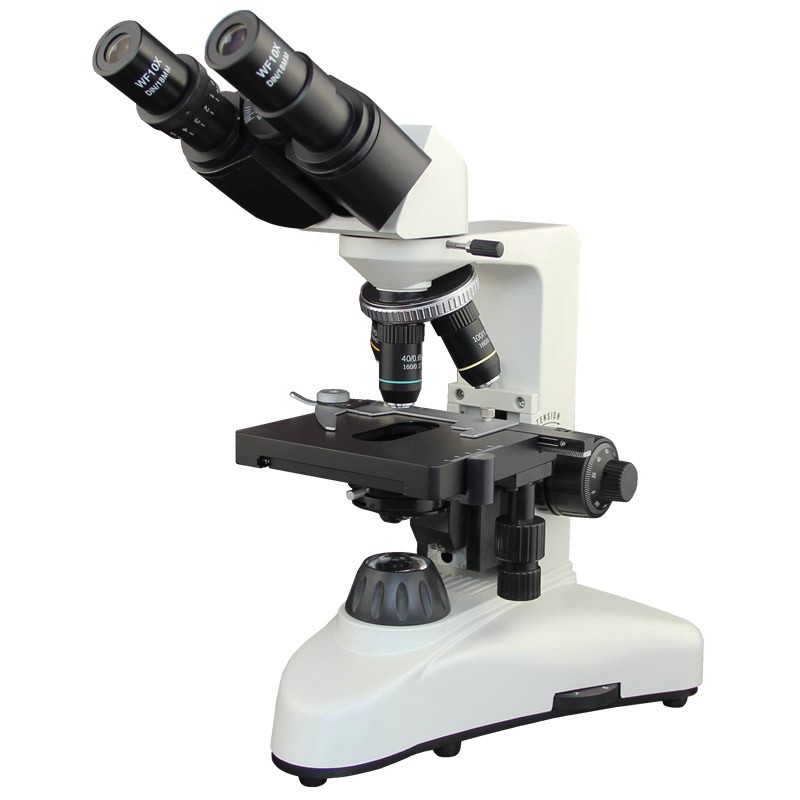

The Compound Optical Research Microscope  is suitable for Pathological or
Biological Research application. It has built in bottom led light with Intensity control &
ABBE Condenser & Iris Diaphragm to choose between transmitted & dark field
illumination for excellent image clarity with numerical aperture of 1.25. The microscope
has built in XY Stage & Spring loaded Slide Holder Stage.

SKU:KOPM100

Product Description

Pathological Microscope

Pathological Microscope Standard Configuration is as below :
Microscope Head – Compensation free Binocular with 30° Incline.
Inter Pupiliary Distance Adjustment – 55mm to 75mm
XY Stage – 110mm x 126mm Size with 70mm x 30mm movement
Focussing – High Accuracy Fine & Course Focus movement with 2μm intervals.
Illumination – High Brightness LED with intensity control.
Eyepiece – 10x 18mm as per DIN Standard.
Objective Selector – Quadruple revolving with slot locking mechanism.
Optional Accessories :
Eyepiece – 15x
Trinocular Setup for attaching Camera is also available.
Achromatic Objectives with different magnifications.

Head: Compensation Free Binocular,30°inclined,55 mm-75 mm
Eyepiece: WF 10 X/18 mm Dia: 23.2 mm
Objective: Achromatic 4 X, Achromatic 10 X, Achromatic 40 X Spring, Achromatic 100 X, Spring
Nose piece: Quadruple Revolving Nose piece
Stage: Double Layer Mechanical Stage,Size 110 mm x 126 mm,Moving Range :70 mm x 30 mm
Focusing:  Coaxial Coarse and Fine Focusing Scale Value 0.002 mm
Condenser ABBE N.A.1.25 Condenser with Iris Diaphragm & Filter
Light Source: 1 W High Brightness LED
